The 201CNQ045 is a schottky rectifier. The The 201CNQ045 center tap Schottky rectifier module series has been optimized for low reverse leakage at high temperature. The proprietary barrier technology allows for reliable operation up to 175℃ junction temperature. Typical applications are in high current switching power supplies, converters, freewheeling diodes, welding, and reverse battery protection.
Parametrics
201CNQ045 absolute maximum ratings: (1)IF(AV)Max. Average Forward Current: 200 A (50% duty cycle @ TC = 138 °C, rectangular wave form); (2)IFSM Max. Peak One Cycle Non-Repetitive: 16,000A( 5μs Sine or 3μs Rect. pulse, Following any rated load condition and with rated VRRM applied); (3)IFSM Surge Current (Per Leg)* See Fig. 7: 3200A(10ms Sine or 6ms Rect. pulse, Following any rated load condition and with rated VRRM applied); (4)EAS Non-Repetitive Avalanche Energy: 135 mJ( TJ = 25 °C, IAS = 20 Amps, L = 0.67 mH); (5)IAR Repetitive Avalanche Current: 20 A( Current decaying linearly to zero in 1 μsec Frequency limited by TJ max. VA = 1.5 x VR typical).
Features
201CNQ045 features: (1)175° C TJ operation; (2)Center tap module; (3)High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance; (4)Low forward voltage drop; (5)High frequency operation; (6)Guard ring for enhanced ruggedness and long term reliability.

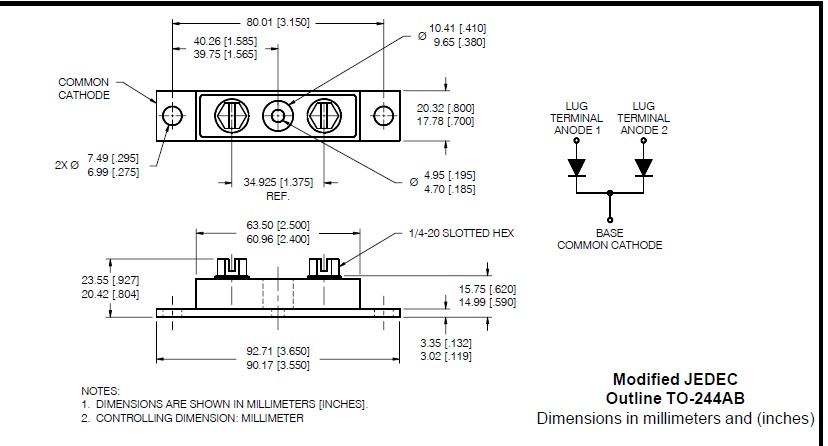

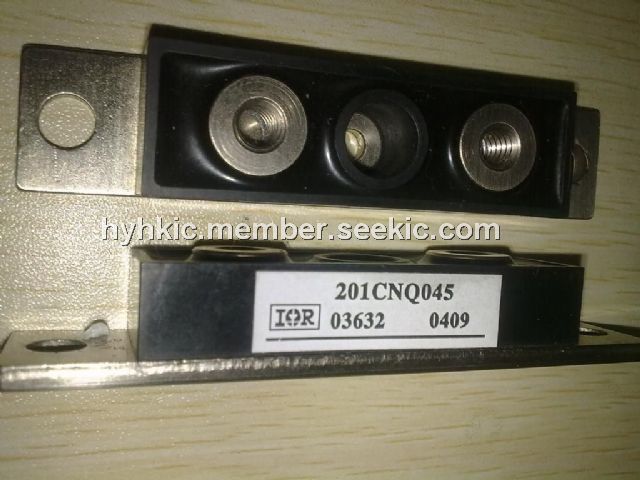

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 201CNQ045 |
|
DIODE SCHOTTKY 45V 200A TO-244AB |
Data Sheet |
