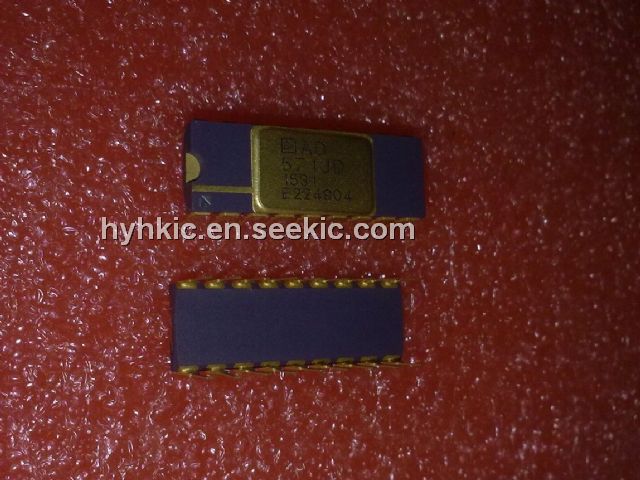

AD571JD

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.50~8.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	8.00 / Piece
50 ~ 200 :	3.50 / Piece

PartNumber:: AD571JD

Brand:: Analog Devices - AD | Pack: DIP | D/C: 14+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Amanda's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2016-10-24

From Other Seller

Part Number:AD571JD
US $3.50 - 8.00
Quantity:

piece

Product Summary

The AD571 is an 10-bit successive approximation A/D converter consisting of a DAC, voltage reference, clock, comparator,
successive approximation register and output buffers—all fabricated on a single chip. No external components are required
to perform a full accuracy 10-bit conversion in 40 μs.
Operating on supplies of +5 V to +15 V and –15 V, the AD571 will accepts analog inputs of 0 V to +10 V unipolar of±5 V bipolar, externally selectable. When the BLANK and CONVERT input is driven low, the three-state outputs will be open and a conversion will commence. Upon completion of the conversion, the DATA READY line goes low and the data appears at the output. Pulling the BLANK and CONVERT input high blanks the outputs and readies the device for the next conversion.
The AD571 executes a true 10-bit conversion with no missing codes in 40 μs maximum.
The AD571 is available in two version for the 0°C to +70°C temperature range, the AD571J and K. The AD571S guarantees
10-bit accuracy and no missing codes from –55°C to +125°C.

Features

Complete A/D Converter with Reference and Clock
Fast Successive Approximation Conversion: 40 ms max
No Missing Codes Over Temperature
08C to +708C: AD571K
–558C to +1258C: AD571S
Digital Multiplexing: Three-State Outputs
18-Pin Ceramic DIP
Low Cost Monolithic Construction
