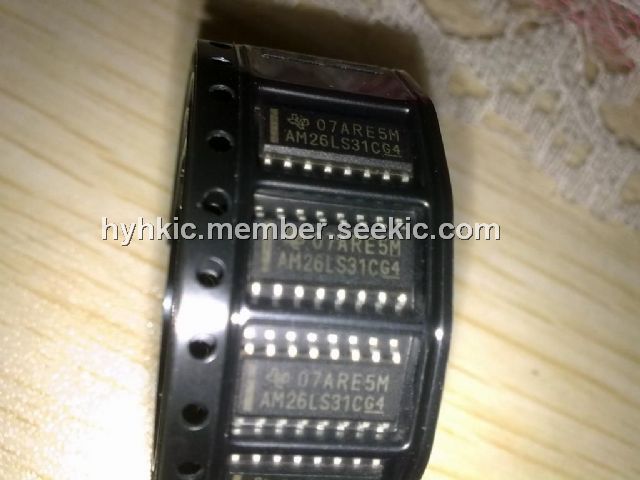

Product Summary

The AM26LS31CDR is a quadruple complementary-output line driver designed to meet the requirements of ANSI TIA/EIA-422-B and ITU (formerly CCITT) Recommendation V.11. The 3-state outputs of the AM26LS31CDR have high-current capability for driving balanced lines such as twisted-pair or parallel-wire transmission lines, and they are in the high-impedance state in the power-off condition. The enable function is common to all four drivers and offers the choice of an active-high or active-low enable (G, G) input. Low-power Schottky circuitry of the AM26LS31CDR reduces power con umption without sacrificing speed.

Parametrics

AM26LS31CDR absolute maximum ratings: (1)VCC Supply voltage(2): 7V; (2)VI Input voltage: 7V; (3)VI Output off-state voltage: 5.5V; (4)θJA Package thermal impedance(3) D package: 73°C/W; (5)θJA Package thermal impedance(3) DB package: 82°C/W; (6)θJA Package thermal impedance(3) N package: 67°C/W; (7)θJA Package thermal impedance(3) NS package: 64°C/W; (8)Lead temperature 1,6 mm (1/16 in) from case for 10 s: 260°C; (9)Lead temperature 1,6 mm (1/16 in) from case for 60 s J package: 300°C; (10)Tstg Storage temperature range: –65, 150°C.

Features

AM26LS31CDR features: (1) Meets or Exceeds the Requirements of ANSI TIA/EIA-422-B and ITU; (2) Operates From a Single 5-V Supply; (3) TTL Compatible; (4) Complementary Outputs; (5) High Output Impedance in Power-Off Conditions; (6) Complementary Output-Enable Inputs.

Diagrams

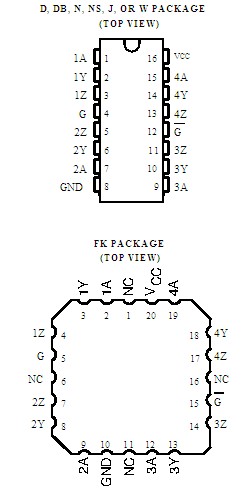

 AM26LS31CDR pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AM26LS31CDR
AM26LS31CDR

Texas Instruments

Buffers & Line Drivers Quad Diff Line

Data Sheet

0-1: $0.44
1-25: $0.37
25-100: $0.30
100-250: $0.22
AM26LS31CDRE4
AM26LS31CDRE4

Texas Instruments

Buffers & Line Drivers Quad Diff Line

Data Sheet

0-1900: $0.20
1900-2500: $0.20
2500-5000: $0.20
5000-10000: $0.19
AM26LS31CDRG4
AM26LS31CDRG4

Texas Instruments

Buffers & Line Drivers Quad Diff Line Drvr

Data Sheet

0-1900: $0.20
1900-2500: $0.20
2500-5000: $0.20
5000-10000: $0.19
