Product Summary
The GAL20XV10B-20LP is a High-Speed E2CMOS PLD. It combines a high performance CMOS process with electrically erasable (E2) floating gate technology to provide the highest speed Exclusive-OR PLD available in the market. At 90mA maximum Icc (75mA typical Icc), the GAL20XV10B-20LP provides a substantial savings in power when compared to bipolar counter-parts. E2CMOS technology offers high speed (<100ms) erase times providing the ability to reprogram, reconfigure or test the devices quickly and efficiently. The applications of the GAL20XV10B-20LP include High Speed Counters, Graphics Processing and Comparators.
Parametrics
GAL20XV10B-20LP absolute maximum ratings: (1)Supply voltage Vcc: –0.5 to+7V; (2)Input voltage applied: –2.5 to VCC +1.0V; (3)Off-state output voltage applied: –2.5 to VCC +1.0V; (4)Storage Temperature: –65 to 150℃; (5)Ambient Temperature with Power Applied: –55 to 125℃.
Features
GAL20XV10B-20LP features: (1)high performance e2cmos technology; (2)50% to 75% reduction in power from bipolar; (3)active pull-ups on all pins; (4)e2cell technology; (5)ten output logic macrocells; (6)preload and power-on reset of all registers.

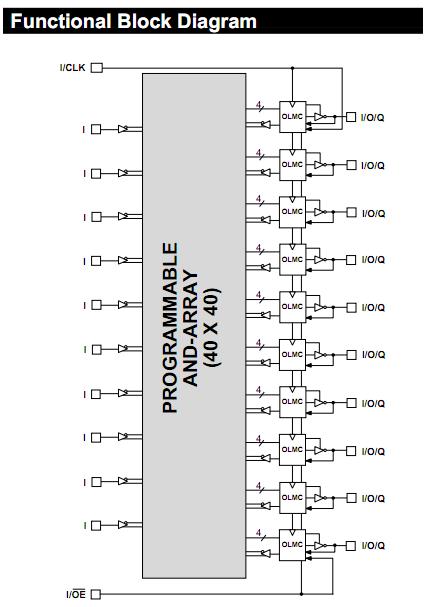

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 GAL20XV10B-20LP |
Lattice |
SPLD - Simple Programmable Logic Devices HI SPD E2CMOS |
Data Sheet |
Negotiable |
|
||||
