Product Summary
The LT1025CN8 is a micropower thermocouple cold junction compensator for use with type E, J, K, R, S, and Tthermocouples. The LT1025CN8 utilizes wafer level and post package trimming to achieve 0.5°C initial accuracy. Special curvatur ecorrection circuitry is used to match the bow found in allthermocouples so that accurate cold junction compensationis maintained over a wider temperature range. A special kit is available (LTK001) which contains the LT1025CN8 and a custom tailored thermocouple amplifier. The amplifierand compensator are matched to allow a much tighter specification of temperature error than would be obtained by addingthe compensator and amplifier errors on a worst-case basis. The amplifier from this kit is available separately as LTKA0x
Parametrics
LT1025CN8 absolute maximum ratings:(1) Input Supply Voltage: 36V; (2) Output Voltage (Forced): 5V; (3) Output Short-Circuit Duration: Indefinite; (4) Operating Temperature RangeLT1025AC, LT1025C: 0°C to 70°C; (5) Storage Temperature Range:– 55°C to 150°C
Features
LT1025CN8 features: (1) 80μA Supply Current; (2) 4V to 36V Operation; (3) 0.5°C Initial Accuracy (A Version); (4) Compatible with Standard Thermocouples(E, J, K, R, S, T); (5) Auxiliary 10mV/°C Outputs; (6) Available in 8-Lead PDIP and SO Packages

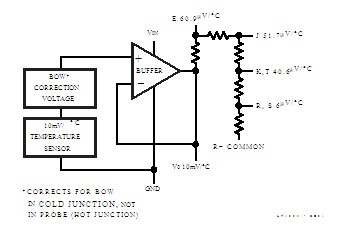

Diagrams

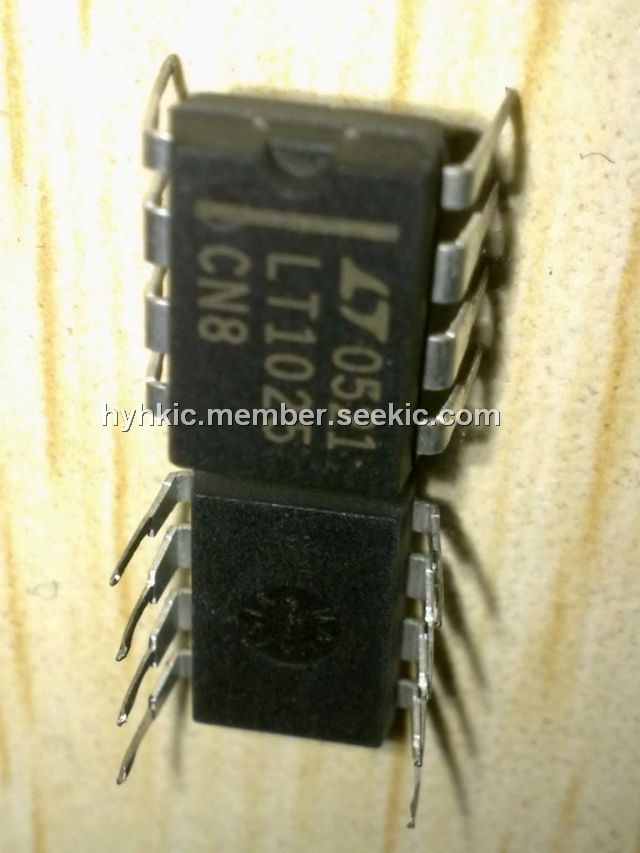

| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1025CN8 |
|
IC THERMO COMPNSATR MICRPWR 8DIP |
Data Sheet |
|
|
||||||||||
|
LT1025CN8#PBF |
|
IC THERMO COMPNSATR MICRPWR 8DIP |
Data Sheet |
|
|
||||||||||
