Product Summary

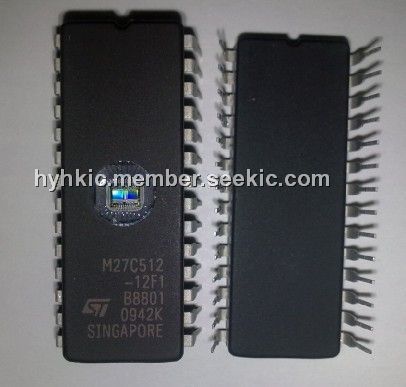

The M27C512-12F1 is a 512 Kbit EPROM offered in the two ranges UV (ultra violet erase) and OTP (one time programmable). It is ideally suited for applications where fast turn-around and pattern experimentation are important requirements and is organized as 65536 by 8 bits. For applications where the content is programmed only one time and erasure is not required, the M27C512-12F1 is offered in FDIP28W, PDIP28, and PLCC32 packages. In order to meet environmental requirements, ST offers the M27C512-12F1 in ECOPACK packages.
Parametrics
Absolute maximum ratings: (1)TA, Ambient Operating Temperature: –40 to 125 ℃; (2)TBIAS, Temperature Under Bias: –50 to 125 ℃; (3)TSTG, Storage Temperature: –65 to 150 ℃; (4)VIO, Input or Output Voltage (except A9): –2 to 7 V; (5)VCC, Supply Voltage: –2 to 7 V; (6)VA9, A9 Voltage: –2 to 13.5 V; (7)VPP, Program Supply Voltage: –2 to 14 V.
Features
Features: (1)5V ± 10% supply voltage in read operation; (2)Access time: 45 ns; (3)Low power “CMOS” consumption: Active current 30 mA; Standby current 100 μA; (4)Programming voltage: 12.75 V ± 0.25 V; (5)Programming time around 6 s.; (6)Electronic Signature: Manufacturer code: 20h; Device code: 3Dh; (7)Packages: ECOPACK versions.
Diagrams
