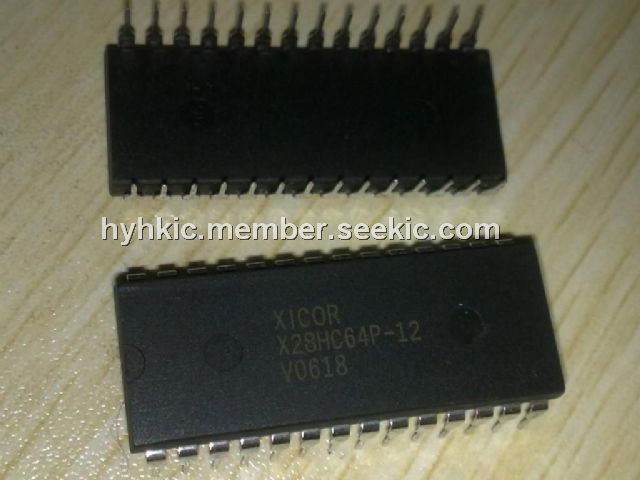

X28HC64P-12

byte alterable EEPROM, 5mA, 7V, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.00~6.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.00~6.00

PartNumber:: X28HC64P-12

Brand:: Xicor Inc. - Xicor | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Amanda's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-02

From Other Seller

Part Number:X28HC64P-12
US $2.00 - 6.00
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
SIL9185ACTU

US $2.30 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

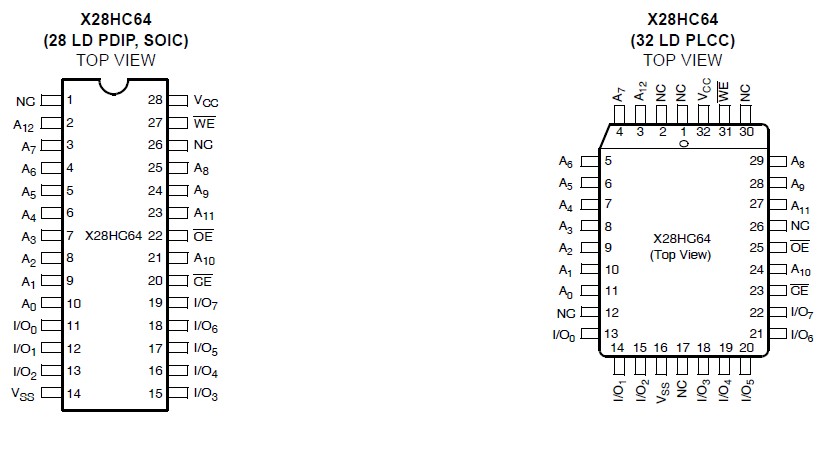

The X28HC64P-12 is a byte alterable EEPROM. Addresses (A0-A12): The Address inputs select an 8-bit memory location during a read or write operation. Chip Enable (CE): The X28HC64P-12 Enable input must be LOW to enable all read/write operations. When CE is HIGH, power consumption is reduced. Output Enable (OE): The X28HC64P-12 Enable input controls the data output buffers and is used to initiate read operations. Data In/Data Out (I/O0-I/O7): Data is written to or read from the X28HC64P-12 through the I/O pins. Write Enable (WE): The Write Enable input controls the writing of data to the X28HC64P-12.

Parametrics

X28HC64P-12 absolute maximum ratings: (1)Temperature Under Bias X28HC64: －10°C to +85°C, X28HC64I: －65°C to +135°C; (2)Storage Temperature: －65°C to +150°C; (3)Voltage on any Pin with Respect to Vss: －1V to +7V; (4)DC Output Current: 5mA.

Features

X28HC64P-12 features: (1)Low power CMOS: 40mA active current max; (2)200μA standby current max; (3)Fast write cycle times: 64-byte page write operation, Byte or page write cycle: 2ms typical, Complete memory rewrite: 0.25 sec. typical, Effective byte write cycle time: 32μs typical; (4)Software data protection; (5)End of write detection: DATA polling, Toggle bit; (6)High reliability: Endurance: 100000 cycles, Data retention: 100 years; (7)JEDEC approved byte-wide pin out; (8)Pb-free available (RoHS compliant).
