Product Summary

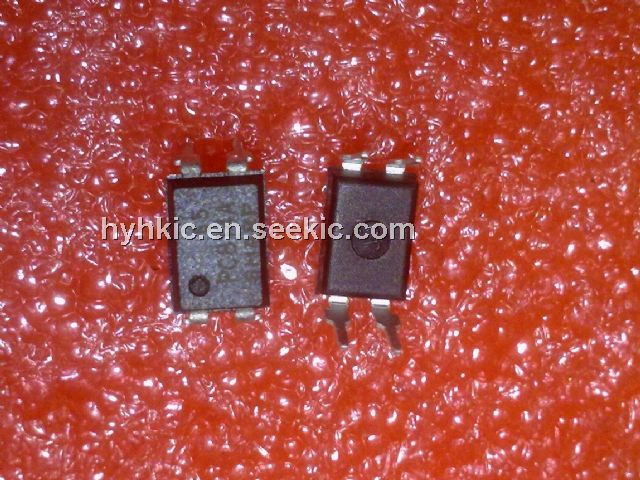

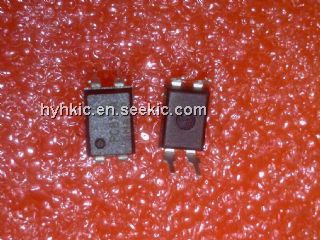

AC Input Photocoupler

1. Programmable controllers

2. Telephone sets, telephone exchangers

3. System appliances

4. Signal transmission between circuits of different potentials and impedances

Features

1. AC input

2. High isolation voltage between input and output (V : 5 000Vrms )

3. Compact dual-in-line package

PC814 (1-channel type )

PC824 (2-channel type )

PC844 (4-channel type )

4. Current transfer ratio

CTR : MIN. 20% at I F = ± 1mA, VCE = 5V

5. Recognized by UL, file No. E64380
