Product Summary

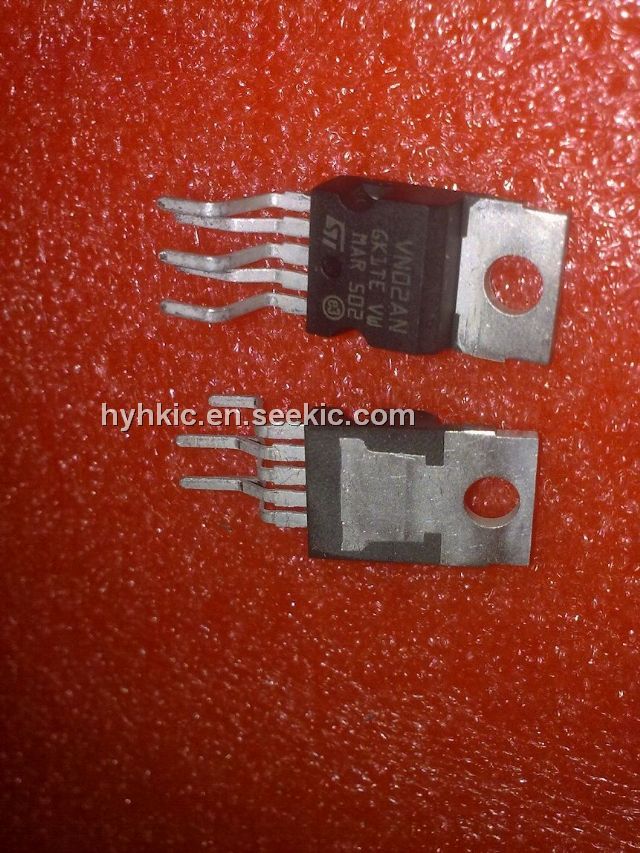

The VN02AN is a monolithic device made using STMicroelectronics VIPower Technology, intended for driving resistive or inductive loads with one side grounded.
Built-in thermal shut-down protects the chip from over temperature and short circuit.
The diagnostic output indicates an over temperature status.
Fast turn-off of inductive load is achieved by negative (-18 V) load voltage at turn-off.
Features
■ OUTPUT CURRENT (CONTINUOUS):
7A @ Tc=25o
C
■ LOGIC LEVEL 5V COMPATIBLE INPUT
■ THERMAL SHUT-DOWN
■ UNDER VOLTAGE PROTECTION
■ OPEN DRAIN DIAGNOSTIC OUTPUT
■ FAST DEMAGNETIZATION OF INDUCTIVE
LOAD
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 VN02AN |
Other |
|
Data Sheet |
Negotiable |
|
||||
 |
VN02AN-11-E |
STMicroelectronics |
Power Switch ICs - Power Distribution High Side Relay Pentawatt 5 Auto |
Data Sheet |
Negotiable |
|
||||
|
VN02AN-12-E |
STMicroelectronics |
Power Switch ICs - Power Distribution Smart Power Sold State PWR Relay |
Data Sheet |
Negotiable |
|
||||
|
VN02ANSP |
Other |
|
Data Sheet |
Negotiable |
|
||||
