Product Summary

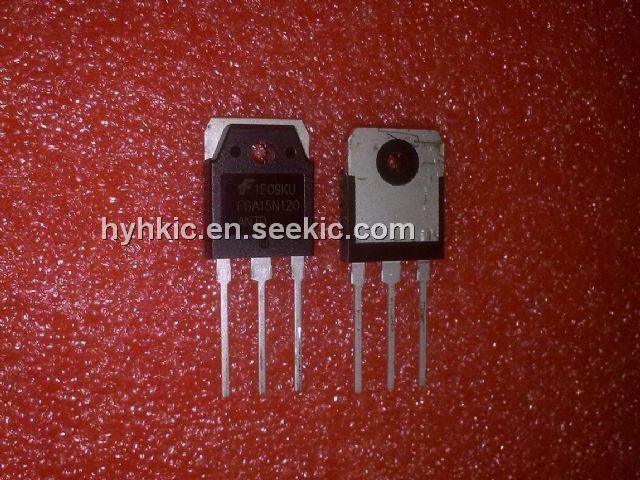

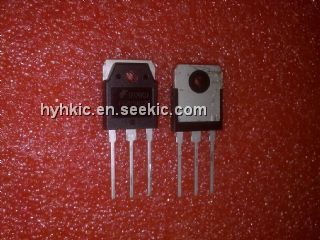

Using Fairchild's proprietary trench design and advanced NPT technology, the 1200V NPT IGBT offers superior conduction and switching performances, high avalanche ruggedness and easy parallel operation. This device is well suited for the resonant or soft switching application such as induction heating, microwave oven, etc.
Features
? NPT Trench Technology, Positive temperature coefficient
? Low saturation voltage: VCE(sat), typ = 1.9V
@ IC = 15A and TC = 25°C
? Low switching loss: Eoff, typ = 0.6mJ
@ IC = 15A and TC = 25°C
? Extremely enhanced avalanche capability
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FGA15N120ANTD |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
FGA15N120ANTDTU |
Fairchild Semiconductor |
IGBT Transistors 1200V NPT Trench IGBT |
Data Sheet |
Negotiable |
|
||||||||||||
|
FGA15N120ANTDTU_F109 |
Fairchild Semiconductor |
IGBT Transistors 1200V NPT Trench |
Data Sheet |
|
|
||||||||||||
