Product Summary
The 74HC/HCT4059 are high-speed Si-gate CMOS devices and are pin compatible with the “4059” of the “4000B” series. They are specified in compliance with JEDEC standard no. 7A. The 74HC/HCT4059 are divide-by-n counters which can be programmed to divide an input frequency by any number (n) from 3 to 15 999. There are four operating modes, timer, divide-by-n, divide-by-10 000 and master preset, which are defined by the mode select inputs (Ka to Kc) and the latch enable input (LE) as shown in the Function table.
Features
? Synchronous programmable divide-by-n counter
? Presettable down counter
? Fully static operation
? Mode select control of initial decade counting function (divide-by-10, 8, 5, 4 and 2)
? Master preset initialization
? Latchable output
? Easily cascadable with other counters
? Four operating modes: timer divider-by-n divide-by-10 000 master preset
? Output capability: standard
? ICC category: MSI
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

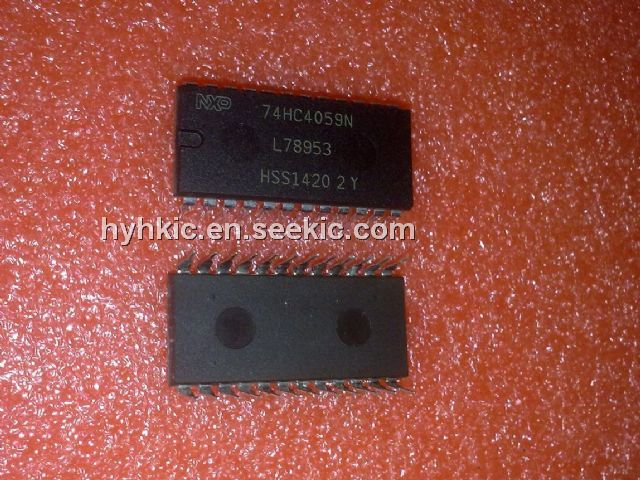

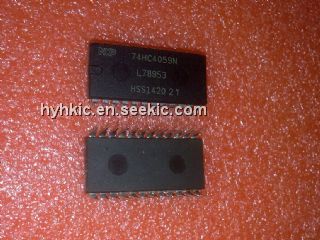

 74HC4059N |
NXP Semiconductors |
Counter Shift Registers PROGRMBL DIVIDE-BY-N COUNTER |
Data Sheet |
Negotiable |
|
||||||||||||
|
74HC4059N,112 |
NXP Semiconductors |
Counter ICs PROGRMBL DIVIDE-BY-N |
Data Sheet |
|
|
||||||||||||
