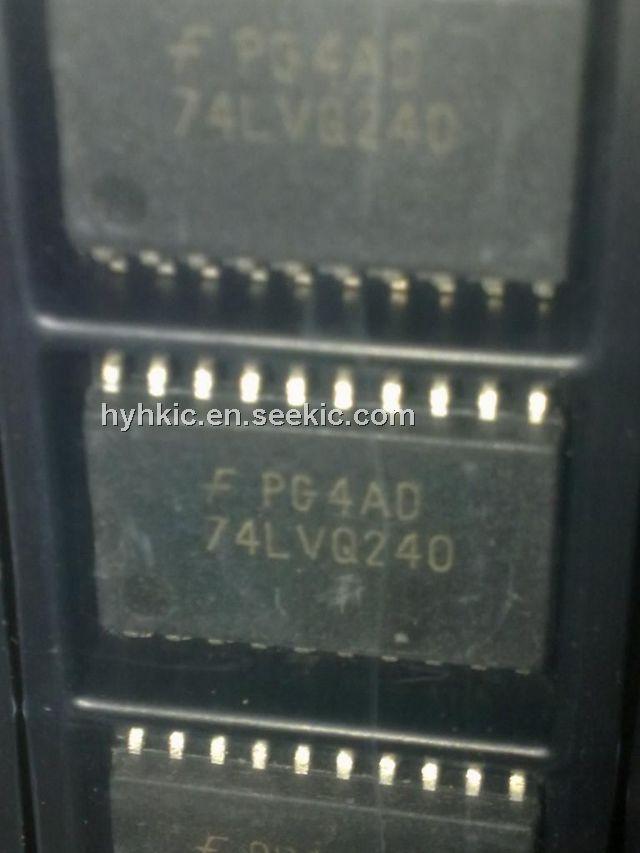

74LVQ240

74LVQ240, Low Voltage, Octal Buffer/Line Driver, SOP, -0.5 to 7.0V, 20mA, Fairchild Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.20~1.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	1.50 / Piece
100 ~ 1000 :	1.30 / Piece
1000 ~ 10000 :	1.20 / Piece

PartNumber:: 74LVQ240

Brand:: Fairchild Semiconductor - Fairchild | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Amanda's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-03-07

From Other Seller

Part Number:74LVQ240
US $1.20 - 1.50
Quantity:

piece

Product Summary

The 74LVQ240 is a Low Voltage Octal Buffer/Line Driver. The 74LVQ240 is an inverting octal buffer and line driver designed to be employed as a memory address driver, clock driver and bus oriented transmitter or receiver which provides improved PC board density.

Parametrics

74LVQ240 absolute maximum ratings: (1)Supply Voltage (VCC) : -0.5V to +7.0V; (2)DC Input Diode Current (IIK) VI = -0.5V : -20 mA; (3)VI = VCC + 0.5V : +20 mA; (4)DC Input Voltage (VI) : -0.5V to VCC + 0.5V; (5)DC Output Diode Current (IOK) VO = -0.5V : -20 mA; (6)VO = VCC + 0.5V : +20 mA; (7)DC Output Voltage (VO) : -0.5V to VCC + 0.5V; (8)DC Output Source or Sink Current (IO) : ±50 mA; (9)DC VCC or Ground Current (ICC or IGND) : ±400 mA; (10)Storage Temperature (TSTG) : -65℃ to +150℃; (11)DC Latch-Up Source or Sink Current : ±300 mA.

Features

74LVQ240 features: (1)Ideal for low power/low noise 3.3V applications; (2)Implements patented EMI reduction circuitry; (3)Available in SOIC JEDEC, SOIC EIAJ, and QSOP packages; (4)Guaranteed simultaneous switching noise level and dynamic threshold performance; (5)Improved latch-up immunity; (6)Guaranteed incident wave switching into 75Ω; (7)4 kV minimum ESD immunity.
