Product Summary

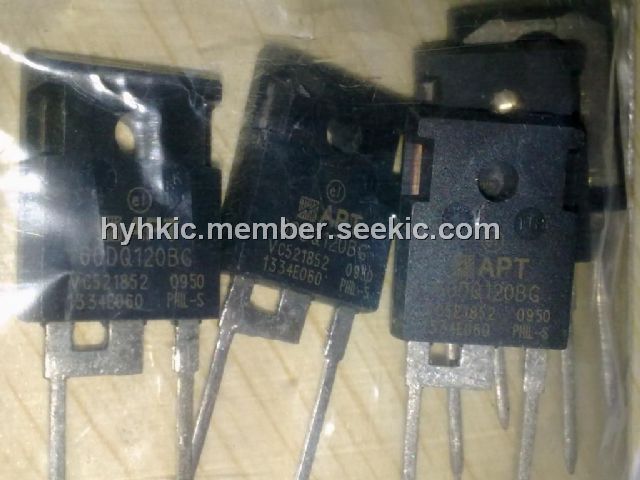

The APT60DQ120BG is an ultrafast soft recovery rectifier diode. The applicaitons of the device are Anti-Parallel Diode, Free Wheeling Diode, Snubber Diode and PFC.
Parametrics
APT60DQ120BG absolute maximum ratings: (1)Maximum D.C. Reverse Voltage, VR: 1200V; (2)Maximum Peak Repetitive Reverse Voltage, VRRM: 1200V; (3)Maximum Working Peak Reverse Voltage, VRWM: 1200V; (4)Maximum Average Forward Current, IF(AV): 60A; (5)RMS Forward Current (Square wave, 50% duty), IF(RMS): 87A; (6)Non-Repetitive Forward Surge Current, IFSM: 540A; (7)Avalanche Energy (1A, 40mH), EAS: 20mJ; (8)Operating and StorageTemperature Range, Tj: -55 to 175℃; (9)Lead Temperature for 10 Sec, TL: 300℃.
Features
APT60DQ120BG features: (1)Ultrafast Recovery Times; (2)Soft Recovery Characteristics; (3)Popular TO-247 Package or Surface Mount D3 PAK Package; (4)Low Forward Voltage; (5)Low Leakage Current; (6)Avalanche Energy Rated.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 APT60DQ120BG |
|
IC DIODE UFAST 60A 1200V TO-247 |
Data Sheet |
|
|
||||||||||||||||||||||
