Product Summary

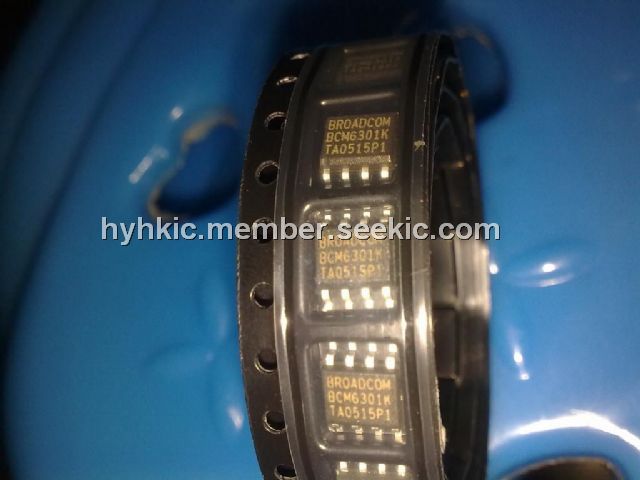

The BCM6301KSG is a single chip adsl to ethernet cpe router.
Features
BCM6301KSG features: (1)Low-cost, high-performance, single-chip ADSL CPE router and modem solution; (2)G.992.1/G.992.2/G.992.3 and T1.413 compliant with world-wide support for Annex A, B, C, RE-ADSL, and; (3)SADSL deployments; (4)High-performance MIPS32TM CPU to support high data rate throughput applications; (5)Hardware ATM SAR for enhanced ATM VC management, traffic shaping, QoS, and CPU offload; (6)10/100-Mbps IEEE 802.3u Ethernet MAC interface and 10/100-Mbps Ethernet PHY with Auto-MDIX; (7)Parallel FLASH and SDRAM interfaces; (8)On-chip power management, EJTAG, GPIO, and UART.

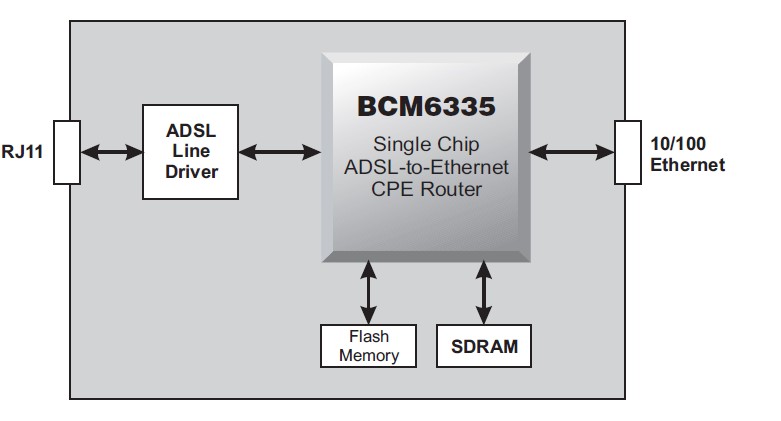

Diagrams
![]() |
