Product Summary

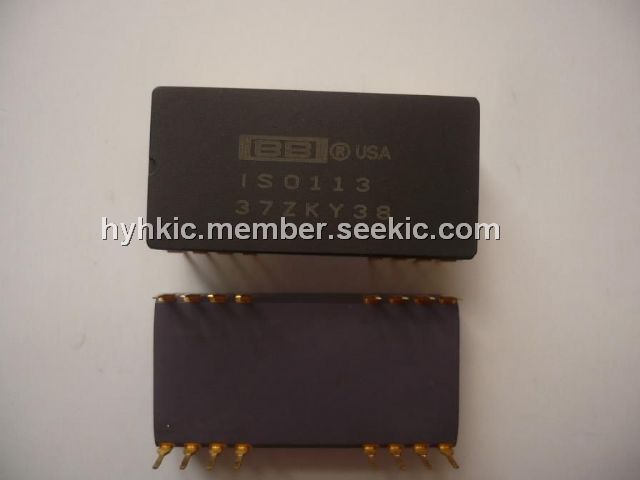

The ISO113 is a kind of output isolation amplifier, which provides both signal and output power across an isolation barrier in a small double-wide DIP package. The ceramic nonhermetic hybrid package with side-brazed pins contains a transformer-coupled DC/ DC converter and a capacitor-coupled signal channel. The typical applications of ISO113 include: (1)4mA to 20mA V/I converters; (2)Motor and valve controllers; (3)Isolated recorder outputs; (4)Medicainstrumentation outputs; (5)Gas analyzers.
Parametrics
ISO113 absolute maximum ratings: (1)Supply Without Damage: ±18V; (2)VIN, Sense Voltage: ±50V; (3)Com1 to Gnd1: ±200mV; (4)Enable, Sync: Gnd to +VCC1; (5)Continuous Isolation Voltage: 1500Vrms; (6)VISO, dv/dt: 20kV/ms; (7)Junction Temperature: +150℃; (8)Storage Temperature: –25℃ to +125℃; (9)Lead Temperature,10s: +300℃; (10)Output Short to Gnd Duration: Continuous; (11)±VCC2 to Gnd 2 Duration: Continuous.
Features
ISO113 features: (1)Self-contained isolated signaand output power; (2)Smalpackage size: double-wide (0.6) Sidebraze DIP; (3)Continuous ac barrier rating: 1500Vrms; (4)Wide bandwidth: 20kHz SmalSignal, 20kHz FulPower; (5)Built-in isolated output power: ±10V to ±18V Input, ±50mA Output; (6)Multichannesynchronization capability; (7)Board area only 0.72in.2 (4.6cm2).

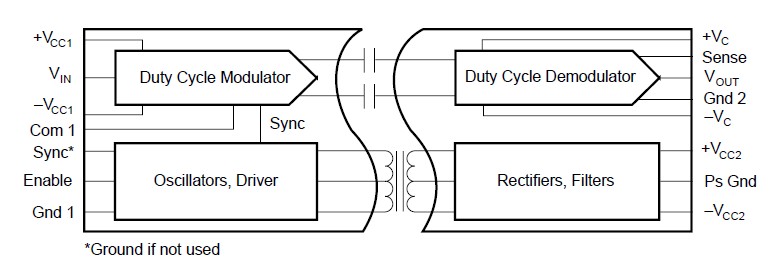

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 ISO113 |
Texas Instruments |
Isolator Interface IC Lo-Cost Hi Vltg Iso Amp |
Data Sheet |
Negotiable |
|
||||
|
ISO113B |
Texas Instruments |
Isolator Interface IC Lo-Cost Hi Vltg Iso Amp |
Data Sheet |
Negotiable |
|
||||
