Product Summary

The BQ3287MT-SB2 is a real-time clock rtc module providing a time-of-day clock and 100-year calendar with alarm features and battery operation. Other features include three maskable interrupt sources, squarewave output, and 114 bytes of general nonvolatile storage. The BQ3287MT-SB2 version is identical to the BQ3287MT-SB2, with the addition of the RAM clear input.The BQ3287MT-SB2 is a fully compatible real-time clock for IBM ATcompatible computers and other applications. The BQ3287MT-SB2 writeprotects the clock, calendar, and storage registers during power failure. The integral backup energy source then maintains data and operates the clock and calendar.

Parametrics

BQ3287MT-SB2 absolute maximum ratings: (1) VCC DC voltage applied on VCC relative to VSS: -0.3 to 7.0 V; (2) VT DC voltage applied on any pin excluding VCC; (3)relative to VSS: -0.3 to 7.0 V, VT≤VCC + 0.3; (4) TOPR Operating temperature: 0 to +70 °C Commercial, -20 to +70 °C Extended “I”; (5) TSTG Storage temperature: -40 to +70 °C Commercial, -40 to +70 °C Extended “I”; (6) TBIAS Temperature under bias: -10 to +70 °C Commercial, -20 to +70 °C Extended “I”; (7) TSOLDER Soldering temperature: 260 °C For 10 seconds.

Features

BQ3287MT-SB2 features: (1) Direct clock/calendar replacement for IBMAT-compatible computers and other applications; (2) Functionally compatible with the DS1287/DS1287A and MC146818A; (3) 114 bytes of general nonvolatile storage; (4) Integral lithium cell and crystal; (5) 160 ns cycle time allows fast bus operation; (6) Selectable Intel or Motorola bus timing; (7) 14 bytes for clock/calendar and control; (8) BCD or binary format for clock and calendar data.

Diagrams

 BQ3287MT-SB2 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

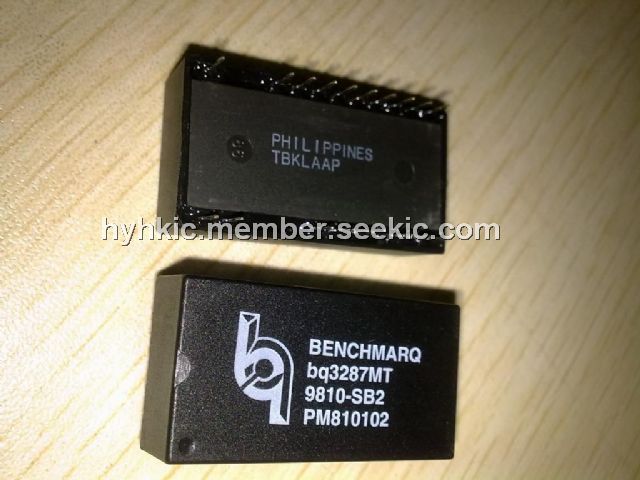

BQ3287MT-SB2
BQ3287MT-SB2

Texas Instruments

Real Time Clock RTC with NVSRAM

Data Sheet

0-1: $9.43
1-25: $6.30
25-100: $5.95
100-250: $5.83
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
BQ32000D
BQ32000D

Texas Instruments

Real Time Clock Serial RTC

Data Sheet

0-1: $1.51
1-25: $1.22
25-100: $1.10
100-250: $1.00
BQ32000DR
BQ32000DR

Texas Instruments

Real Time Clock Serial RTC

Data Sheet

0-1: $1.43
1-25: $1.16
25-100: $1.04
100-250: $0.90
bq3285
bq3285

Other


Data Sheet

Negotiable
bq3285E
bq3285E

Other


Data Sheet

Negotiable
bq3285EC
bq3285EC

Other


Data Sheet

Negotiable
BQ3285ECSS
BQ3285ECSS

Texas Instruments

IC REAL TIME CLOCK 24-QSOP

Data Sheet

Negotiable
