Product Summary
The BYV541V200 is a high efficiency fast recovery rectifier diode. Dual rectifier suited for switchmode power supply and high frequency DC to DC converters. The BYV541V200 is Packaged in ISOTOPTM this device is intended for use in low voltage, high frequency inverters, free wheeling and polarity protection applications.
Parametrics
BYV541V200 absolute maximum ratings: (1)IF(RMS)RMS forward current Per diode: 100 A; (2)IF(AV)Average forward current d = 0.5 Tc=90°C Per diode: 50 A; (3)IFSM Surge non repetitive forward current tp=10ms sinusoidal Per diode: 1000 A; (4)Tstg Storage and junction temperature range: - 40 to+150°C; (5)Tj Storage and junction temperature range: - 40 to + 150°C.
Features
BYV541V200 features: (1)SUITED FOR SMPS; (2)VERY LOW FORWARD LOSSES; (3)NEGLIGIBLE SWITCHING LOSSES; (4)HIGH SURGE CURRENT CAPABILITYn; (5)HIGH AVALANCHE ENERGY CAPABILITY; (6)INSULATED: Insulating voltage = 2500 VRMS, Capacitance = 45 pF.

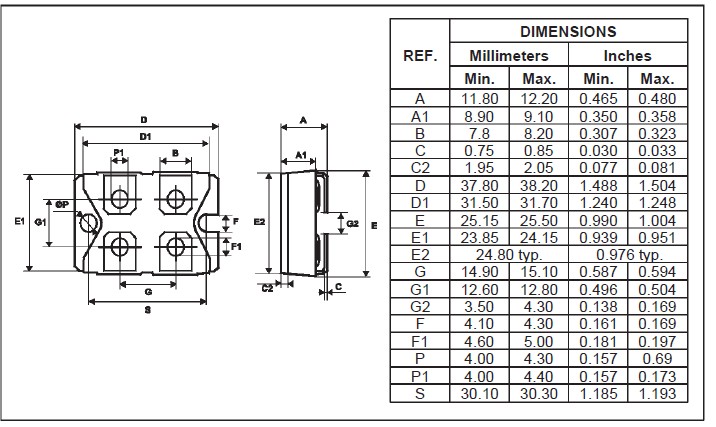

Diagrams
 |
