Product Summary

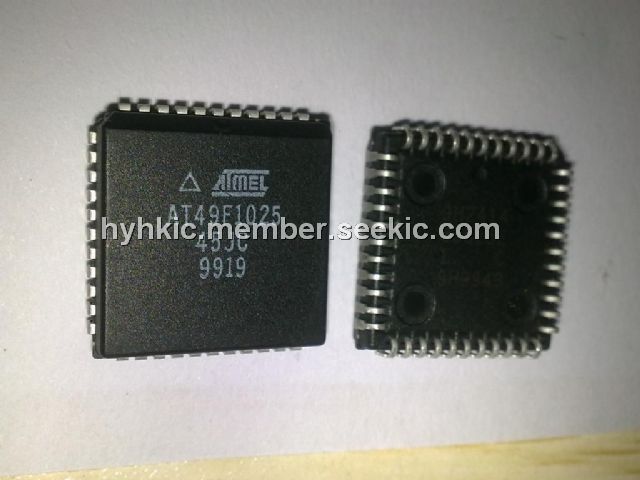

The AT49F1025-45JC is a fash memory. Its 1 megabit of memory is organized as 65,536 words by 16 bits. Manufactured with Atmel advanced nonvolatile CMOS technology, the devices offer access times to 45 ns with power dissipation of just 275 mW over the commercial temperature range. When the AT49F1025-45JC is deselected, the CMOS standby current is less than 100 mA. The only difference between the AT49F1024 and the AT49F1025-45JC is the pinout. The AT49F1024 is pin compatable with the AT27C1024, and the AT49F1025-45JC is pin compatable with the AT29C1024.

Parametrics

AT49F1025-45JC absolute maximum ratings: (1)Storage Temperature: -65°C to +150°C; (2)All Input Voltages (including NC Pins)with Respect to Ground: -0.6V to +6.25V; (3)All Output Voltages with Respect to Ground: -0.6V to VCC + 0.6V; (4)Voltage on OE with Respect to Ground: -0.6V to +13.5V.

Features

AT49F1025-45JC features: (1)Single Voltage Operation: 5V Read, 5V Reprogramming; (2)Fast Read Access Time - 45 ns; (3)Internal Program Control and Timer; (4)8K word Boot Block With Lockout; (5)Fast Erase Cycle Time - 10 seconds; (6)Word By Word Programming - 10 ms/Word Typical; (7)Hardware Data Protection; (8)DATA Polling For End Of Program Detection; (9)Small 10 x 14 mm VSOP Package; (10)Typical 10,000 Write Cycles.

Diagrams

AT49F1025-45JC block diagram
