Product Summary

These devices are digitally controlled analog switches which utilize silicon gate CMOS technology to achieve operating
speeds similar to LSTTL with the low power consumption of standard CMOS integrated circuits.
These analog multiplexers/demultiplexers control analog voltages that may vary across the voltage supply range (i.e.
VCC to VEE). They are bidirectional switches thus allowing any analog input to be used as an output and vice-versa.
The switches have low “on” resistance and low “off” leak- ages. In addition, all three devices have an enable control
which, when high, disables all switches to their “off” state.

Features

? Wide Analog Input Voltage Range . . . . . . . . . .
±5V Max
? Low “On” Resistance
-70
? Typical (VCC - VEE = 4.5V)
-40
? Typical (VCC - VEE = 9V)
? Low Crosstalk between Switches
? Fast Switching and Propagation Speeds
? “Break-Before-Make” Switching
? Wide Operating Temperature Range . . -55oC to 125oC
? CD54HC/CD74HC Types
- Operation Control Voltage . . . . . . . . . . . . . . 2V to 6V
- Switch Voltage . . . . . . . . . . . . . . . . . . . . . . . 0V to 10V
- High Noise Immunity . . . NIL = 30%, NIH = 30% of VCC,
VCC = 5V
? CD54HCT/CD74HCT Types
- Operation Control Voltage . . . . . . . . . . . 4.5V to 5.5V
- Switch Voltage . . . . . . . . . . . . . . . . . . . . . . . 0V to 10V
- Direct LSTTL Input
Logic Compatibility . . . VIL = 0.8V Max, VIH = 2V Min
- CMOS Input Compatibility . . . . . II ≤ 1μA at VOL, VOH

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

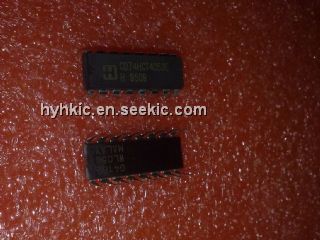

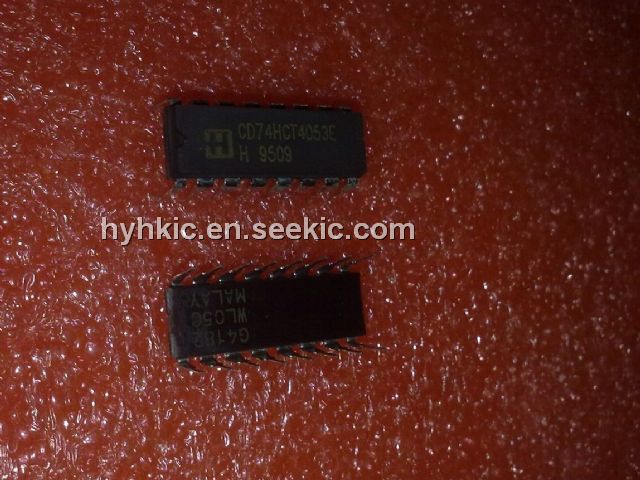

CD74HCT4053E
CD74HCT4053E

Texas Instruments

Multiplexer Switch ICs Triple 2ch

Data Sheet

0-1: $0.31
1-25: $0.23
25-100: $0.20
100-250: $0.15
CD74HCT4053EE4
CD74HCT4053EE4

Texas Instruments

Multiplexer Switch ICs Hi-Spd CMOS Analog Mltplxr/Demltplxr

Data Sheet

0-1: $0.26
1-25: $0.21
25-100: $0.18
100-250: $0.16
