Product Summary

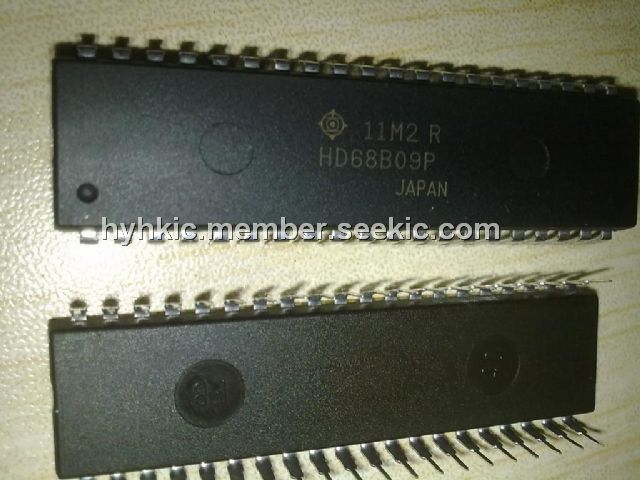

The HD68B09P is a revolutionary high performance 8-bit microprocessor which supports modem programming tech—niques such as position independence, rcentrancy, and modular programming.The HD68B09P addition to the HMCS6800 family has major architectural improvements which include additional registers, instructions and addressing modes.The basic instructions of any computer are greatly enhanced by the presence of powerful addressing inodes. The HD68B09P has the most complete set of addressing modes available on any 8-bit microprocessor today.The HD68B09P has hardware and software features which make it an ideal processor for higher level language execution or standard controller applications.
Parametrics
HD68B09P absolute maximum ratings: (1)Supply Voltage VCC*: -0.3 ～+7.0V; (2)Input Voltage Vin*: -0.3～+7.0V; (3)Operating Temperature Topr: -20～+75°C; (4)Storage Temperature Tstg: -55 ～+150°C.
Features
HD68B09P features: (1)Two 16-bit Index Registers; (2)Two 16 bit Indexabie Stack Pointers; (3)Two 8-bit Accumulators can be Concatenated to Form One 16-Bit Accumulator; (4)Direct Page Register Allows Direct Addressing Through¬out Memory; (5)On Chip Oscillator.

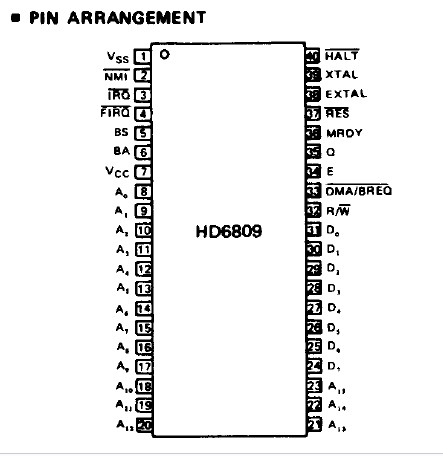

Diagrams
 |
