Product Summary

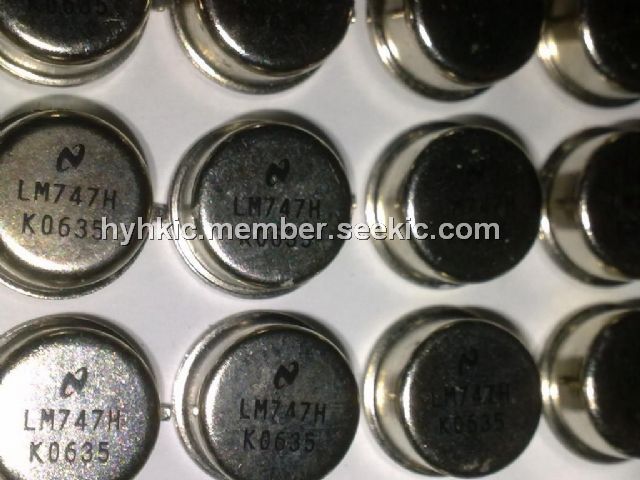

The LM747H/883 is a general purpose dual operational amplifier. The two amplifiers share a common bias network and power supply leads. Otherwise, their operation is completely independent. Additional features of the LM747H/883 are: no latch-up when input common mode range is exceeded, freedom from oscillations, and package flexibility. The LM747H/883 has its specifications guaranteed over the temperature range from 0℃ to a70℃ instead of b55℃ to a125℃.

Parametrics

LM747H/883 absolute maximum ratings: (1)Supply Voltage: ±18V; (2)Power Dissipation: 800 mW; (3)Differential Input Voltage: ±30V; (4)Input Voltage: ±15V; (5)Output Short-Circuit Duration: Indefinite; (6)Operating Temperature Range: 0℃ to a70℃; (7)Storage Temperature Range: -65℃ to a150℃; (8)Lead Temperature (Soldering, 10 sec.): 300℃.

Features

LM747H/883 features: (1)No frequency compensation required; (2)Short-circuit protection; (3)Wide common-mode and differential voltage ranges; (4)Low power consumption; (5)No latch-up; (6)Balanced offset null.

Diagrams

<IMG alt="LM747H/883 Connection Diagrams" src="http://www.seekic.com/uploadfile/ic-mfg/20128232438562.jpg" border=0>
