Product Summary

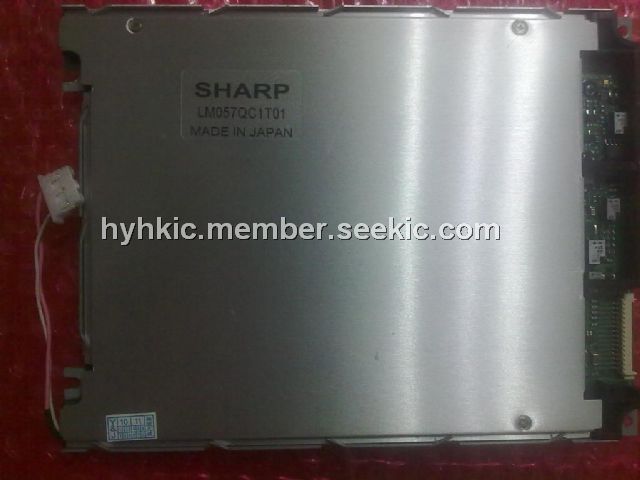

The LM057QC1T01 is a 320*RGB*240 dots color display module consisting of and LCD panel, PWB with electric components mounted onto, TCP to connect the LCD panel and PWB electrically, and plastic chassis CCFT back light and bezel to fix them mechanically.

Parametrics

Electrical characteristics: (1)supply voltage:4.75V to 5.25V; (2)supply current:IDD:3.0mA to 4.5mA, IEE:6.5mA to 10mA; (3)power dissipation:170mW to 255mW.

Features

Features: (1)outline dimensions:154.6±0.5(W)*114.8±0.5(H)*8.3±0.5(D)mm; (2)viewing area:118.2(W)*89.4(H); (3)active area:115.18(W)*86.38(H)mm; (4)display format:320*RGB(W)*240(H)mm; (5)dot size:0.1*RGB(W)*0.34(H); (6)dot spacing:0.02mm; (7)base color:normally black.
