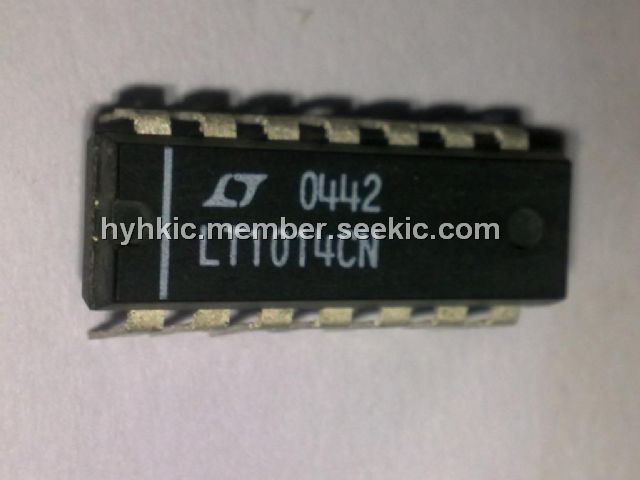

LT1014CN

precision quad operational amplifier, 22V, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~0.10 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~0.10

PartNumber:: LT1014CN

Brand:: Linear Technology - Linear | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Amanda's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-04-27

From Other Seller

Part Number:LT1014CN
US $0.10 - 0.10
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The LT1014CN is a precision quad operational amplifier. The LT1014CN directly upgrades designs in the industry standard 14-pin DIP LM324/LM348/OP-11/4156 pin configuration. The LT1014CN is no longer necessary to compromise specifications, while saving board space and cost, as compared to single operational amplifiers. The LT1014CN low offset voltage of 50μV, drift of 0.3μV/°C, offset current of 0.15nA, gain of 8 million, common mode rejection of 117dB and power supply rejection of 120dB qualify it as four truly precision operational amplifiers. Particularly important is the low offset voltage, since no offset null terminals are provided in the quad configuration. Although supply current is only 350μA per amplifier, a new output stage design sources and sinks in excess of 20mA of load current, while retaining high voltage gain.

Parametrics

LT1014CN absolute maximum ratings: (1)Supply Voltage: ±22V; (2)Differential Input Voltage: ±30V; (3)Input Voltage: Equal to Positive Supply Voltage, 5V Below Negative Supply Voltage; (4)Output Short-Circuit Duration: Indefinite; (5)Storage Temperature Range All Grades: –65°C to 150°C; (6)Lead Temperature (Soldering, 10 sec.): 300°C.

Features

LT1014CN features: (1)Single Supply Operation Input Voltage Range Extends to Ground, Output Swings to Ground while Sinking Current; (2)Pin Compatible to 1458 and 324 with Precision Specs; (3)Guaranteed Offset Voltage: 150μV Max; (4)Guaranteed Low Drift: 2μV/°C Max; (5)Guaranteed Offset Current: 0.8nA Max; (6)Guaranteed High Gain 5mA Load Current: 1.5 Million Min, 17mA Load Current: 0.8 Million Min; (7)Guaranteed Low Supply Current: 500μA Max; (8)Low Voltage Noise, 0.1Hz to 10Hz: 0.55μVp-p; (9)Low Current Noise—Better than 0P-07, 0.07pA/√HZ.
