Product Summary

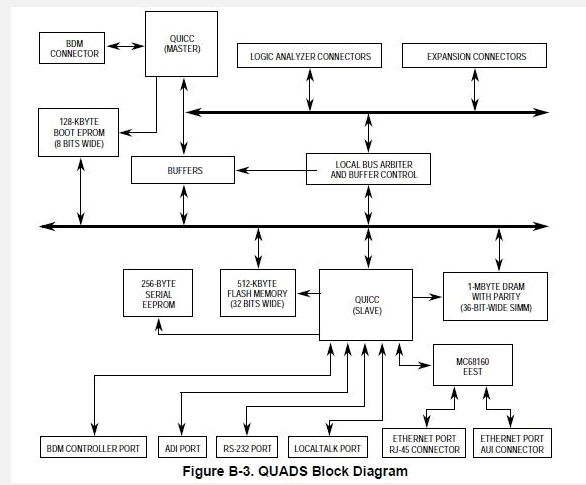

The MC68EN360FE25C is a QUad Integrated Communication Controller (QUICC). It can be used in a variety of controller applications. The MC68EN360FE25C particularly excels in communications activities. It can be described as a next-generation MC68302 with higher performance in all areas of device operation, increased flexibility, major extensions in capability, and higher integration. The MC68EN360FE25C has seven serial channels: four SCCs, two serial management controllers (SMCs), and one serial peripheral interface (SPI).

Parametrics

MC68EN360FE25C absolute maximum ratings: (1)Supply Voltage, VCC: –0.3 to +6.5 V; (2)Input Voltage, Vin: –0.3 to +6.5 V; (3)Operating Temperature Range, TA: 0 to 70℃ or –40 to +85℃; (4)Maximum operating Junction Temperature, TJ: 115℃; (5)Minimum operation Ambient Temperature, TA: 0℃; (6)Storage Temperature Range, Tstg: –55 to +150℃.

Features

MC68EN360FE25C features: (1)CPU32+ Processor (4.5 MIPS at 25 MHz); (2)2-Bit Version of the CPU32 Core (Fully Compatible with the CPU32); (3)Background Debug Mode; (4)Byte-Misaligned Addressing; (5)Up to 32-Bit Data Bus (Dynamic Bus Sizing for 8 and 16 Bits); (6)Up to 32 Address Lines (At Least 28 Always Available); (7)Complete Static Design (0?5-MHz Operation); (8)Slave Mode To Disable CPU32+ (Allows Use with External Processors); (9)Multiple QUICCs Can Share One System Bus (One Master); (10)Supports External MC68030-Type Bus Masters; (11)All QUICC Features Usable in Slave Mode; (12)Contains Complete Dynamic Random-Access Memory (DRAM) Controller.
