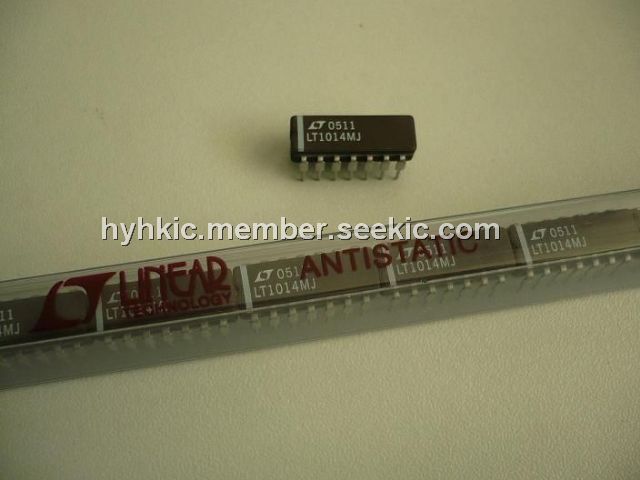

LT1014MJ

Quad Precision Op Amp, 0.8nA, 14-DIP, 22V, Linear Technology

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~0.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~0.20

PartNumber:: LT1014MJ

Brand:: Linear Technology - Linear | Pack: DIP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Amanda's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-04-25

From Other Seller

Part Number:LT1014MJ
US $0.10 - 0.20
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
IRF9540NPBF

US $0.50 - 3.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

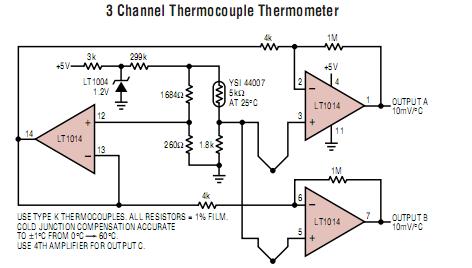

The LT1014MJ is a Quad Precision Op Amp. It directly upgrades designs in the industry standard 14-pin DIP configuration. The LT1014DN is no longer necessary to compromise specifications, while saving board space and cost, as compared to single operational amplifiers. The applications of the LT1014MJ are Strain Gauge Signal Conditioners, Thermocouple Amplifiers, Instrumentation Amplifiers, 4mA–20mA Current Loop Transmitters, Multiple Limit Threshold Detection, Active Filters, Multiple Gain Blocks.

Parametrics

LT1014MJ absolute maximum ratings: (1)Supply Voltage:±22V; (2)Differential Input Voltage:±30V; (3)Input Voltage Equal to Positive Supply Voltage, 5V Below Negative Supply Voltage; (4)Output Short-Circuit Duration:Indefinite; (5)Storage Temperature Range:–65℃ to 150℃; (6)Lead Temperature (Soldering, 10 sec.):300℃; (7)Operating Temperature Range:0℃ to 70℃.

Features

LT1014MJ features: (1)Single Supply Operation: Input Voltage Range Extends to Ground, Output Swings to Ground while Sinking Current; (2)Pin Compatible to 1458 and 324 with Precision Specs; (3)Guaranteed Offset Voltage: 150μV Max; (4)Guaranteed Low Drift: 2μV/℃ Max; (5)Guaranteed Offset Current: 0.8nA Max; (6)Guaranteed High Gain: 5mA Load Current: 1.5 Million Min, 17mA Load Current: 0.8 Million Min; (7)Guaranteed Low Supply Current: 500μA Max; (8)Low Voltage Noise, 0.1Hz to 10Hz: 0.55μVp-p; (9)Low Current Noise—Better than 0P-07, 0.07pA/√Hz.
