Product Summary

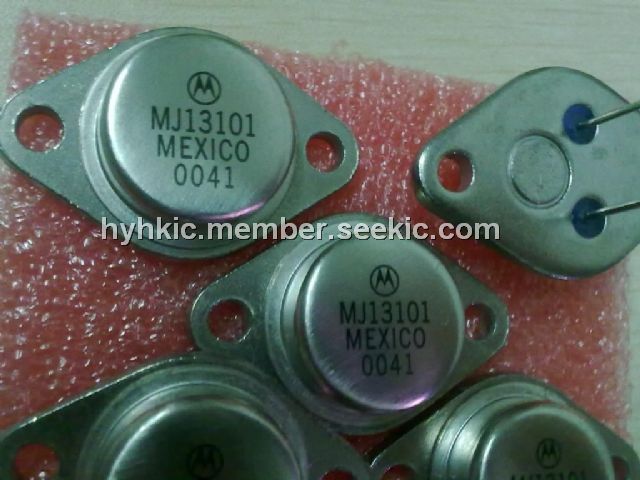

The MJ13101 is a switchMODE II series npn silicon power transistor. The MJ13101 is designed for high-voltage, high-speed, power switching in inductive circuits where fall time is critical. It is particulary suited for line-operated switchmode applications such as: switching regulators, inverters, solenoid and relay drivers, motor controls, deflection circuits.
Parametrics
MJ13101 absolute maximum ratings: (1)collector-emitter voltage, VCEO: 450V; (2)collector-emitter voltage, VCEV: 750V; (3)emitter base voltage, VEB: 6.0V; (4)collector current, continuous, IC: 20A; peak, ICM: 30A; (5)base current, continuous, IB: 10A; peak, IBM: 15A; (6)total power dissipation @ TC = 25℃, PD: 175W; @ TC = 100℃, PD: 100W; derate above 25℃, PD: 1.0W/℃; (7)operating and storage junction temperature range, TJ, Tstg: -65 to +200℃.
Features
MJ13101 features: (1)Fast turn-off times, 30ns inductive fall time @ 25℃ typ; 50ns inductive crossover time @ 25℃ typ; 900ns inductive storage time @ 25℃ typ; (2)Operating temperature range, -65 to +200℃; (3)100℃ performance specified for: reverse-biased SOA with inductive loads, switching times with inductive loads, saturation voltages, leakage currents.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MJ13101 |
Other |
|
Data Sheet |
Negotiable |
|
||||
