Product Summary

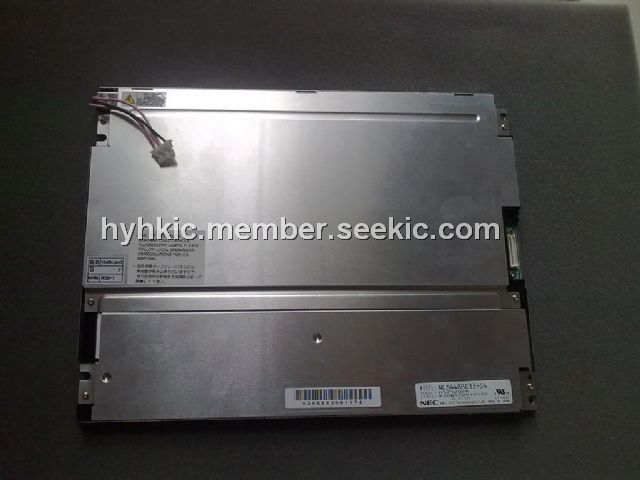

The NL6448BC33-54 is a TFT color LCD module. It is composed of the amorphous silicon thin film transistor liquid crystal display (a-Si TFT LCD) panel structure with driver LSIs for driving the TFT (Thin Film Transistor)array and a backlight.
Parametrics
Absolute maximum ratings: (1)LCD panel signal processing board:-0.3V to +6.5 V; (2)Lamp voltage:1,500 Vrms; (3)Display signals:-0.3V to VCC+0.3V; (4)Function signal:-0.3V to VCC+0.3V; (5)Storage temperature:-20℃ to +80℃; (6)Operating temperature:Front surface:-10℃ to +70℃, Rear surface:-10℃ to +70℃.
Features
Features: (1)High luminance; (2)High contrast; (3)6-bit digital RGB signals; (4)DE (Data enable) function; (5)Reversible-scan direction; (6)Edge light type (Inverter less); (7)Replaceable lamp for backlight; (8)Acquisition product for UL60950 3rd edition/CSA C22.2 No.60950(File number: E170632).
Diagrams
<IMG src="http://www.seekic.com/uploadfile/ic-mfg/20128232221771.jpg" border=0>
 |
