Product Summary

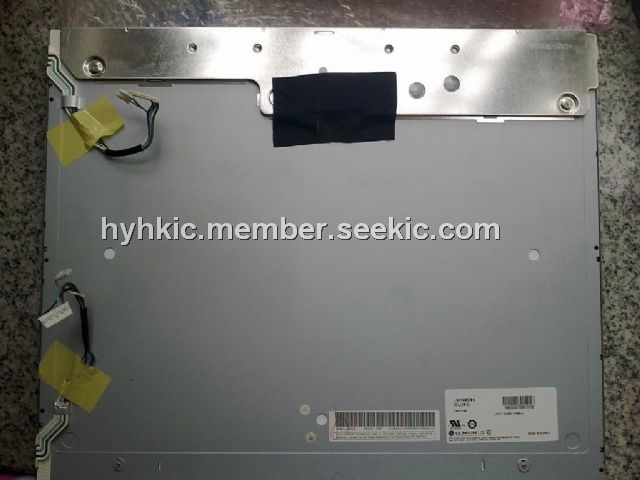

The LM190E05 is a Color Active Matrix Liquid Crystal Display with an int egral Cold Cathode Fluorescent Lamp(CCFL) backlight system.
Parametrics
Absolute maximum ratings: (1)Power Supply Input Voltage:-0.3V to +14.0V; (2)Operating Temperature:0℃ to +50℃; (3)Storage Temperature:-20℃ to +60℃; (4)Operating Ambient Humidity:10%RH to +90%RH; (5)Storage Humidity:10%RH to +90%RH.
Features
Features: (1)Outline Dimension:396.0(H) x 324.0(V) x 20.0(D) mm(Typ.); (2)Active screen size:19.0 inch (481.84mm) diagonal; (3)Pixel Pitch:0.294 xRGB(H)mm x 0.294(V) mm; (4)Pixel Format:1280 horiz. by 1024 vert. Pixels. RGB stripe arrangement; (5)Display Colors:8bit (16.7M colors); (6)Luminance, white:270 cd/m2 (Typ. Center 1 point); (7)Power Consumption:Total 25.15 Watt(Typ.), (5.5 Watt @VLCD, 19.65Watt @[Lamp=7.5mA]); (8)Weight:2,970 g (Typ.); (9)Display operating mode:Transmissive mode, normally black; (10)Surface treatments:Hard coating (3H), Anti-glare treatment of the front polarizer.
Diagrams
<IMG src="http://www.seekic.com/uploadfile/ic-mfg/2012823838138.jpg" border=0>
 |
