Product Summary

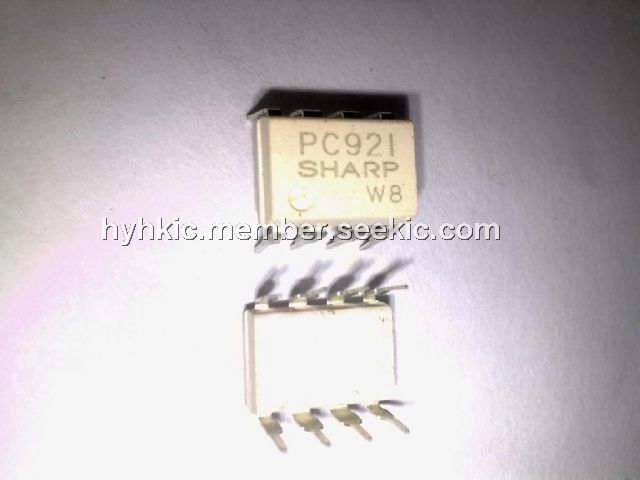

The PC921 is a high power opic photocoupler. The PC921 has a light detecting element and signal processing circuitry integrated onto a single chip.
Parametrics
PC921 absolute maximum ratings: (1) Input Forward current IF: 25mA; (2) Input Reverse voltage vR: 6V; (3) Output Supply voltage Vcc: 15V; (4) Output Oi output current Io1: 0.5A; (5) Output 20f peak output current Io1P: 1.0A; (6) Out put02 output current Io2: 0.6A; (7) Output 202 peak output current Io2P: 2.0A; (8) Output Oi Output voltage Vo1:15V; (9) Output Power dissipation Po: 500mW; (10) Total power dissipation Ptot: 550mW; (11) Operating temperature Topr: －20 ~＋80 ℃; (12) Storage temperature TsLg: －55 ~＋125℃.
Features
PC921 features: (1)Built-in base amplifier for power transistor drive; (2)High power (I01: MAX. 0.5A (DC))(I02P : MAX. 2.0A (pulse)); (3)High speed response (tpHL, tpLH- MAX, 5μS); (4)High sensitivity (IFLH： MAX, 5mA); (5)UL recognized, file No. E64380.

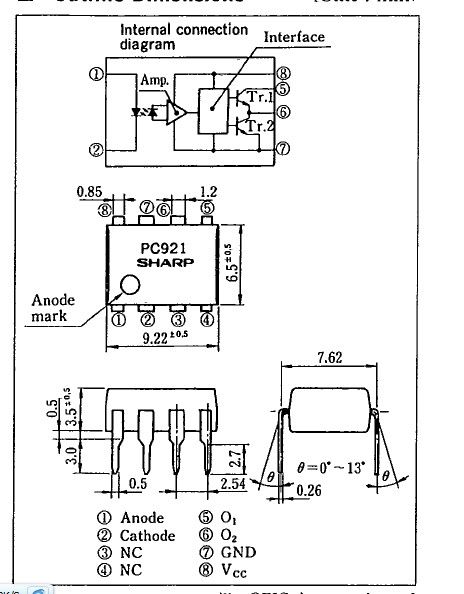

Diagrams
