Product Summary
Pericom Semiconductor?s PI49FCT series of logic circuits are produced using the Company?s advanced 0.8 micron CMOS
technology, achieving industry leading speed grades.
The PI49FCT805T and PI49FCT2805T are non-inverting clock drivers. The PI49FCT806T is an inverting clock driver designed with
two independent groups of buffers that have Hi-Z state Output Enable inputs (active LOW) with a 1-in, 5-out configuration per
group. Each clock driver consists of two banks of drivers, driving five outputs each from a standard TTL-compatible CMOS input.
The PI49FCT2805T also features a 25-ohm on-chip resistor for lower noise.
Features
? Extremely low output skew: 0.5ns
? Monitor output pin
? Clock busing with Hi-Z state control
? TTL input and CMOS output compatible
? Extremely low static power (1mW, typ.)
? Hysteresis on all inputs
? Packages available:
20-pin 209 mil wide SSOP (H)
20-pin 300 mil wide SOIC (S)
20-pin 150 mil wide QSOP (Q)
? Device models available on request
? Industrial Operation at -40oC to +85oC
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

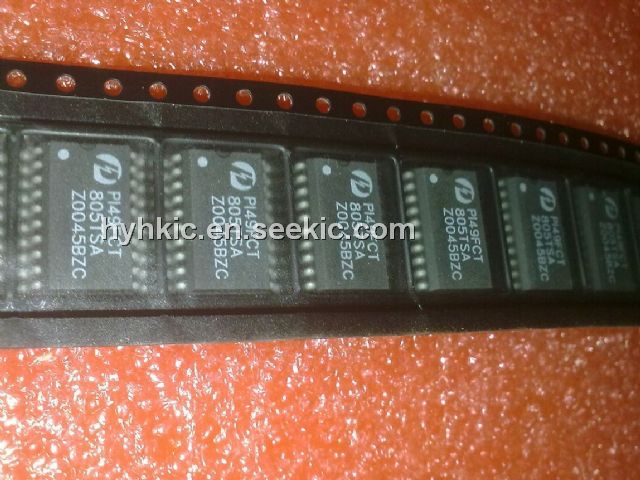

 PI49FCT805ATS |
|
IC CLOCK BUFFER 1:5 66MHZ 20SOIC |
Data Sheet |
Negotiable |
|
||||||||||
 |
PI49FCT805ATSE |
Pericom |
Clock Buffer Non Inverting Clock Driver |
Data Sheet |
|
|
||||||||||
 |
PI49FCT805ATSEX |
Pericom |
Clock Buffer Non Inverting Clock Driver |
Data Sheet |
|
|
||||||||||
