Product Summary
The UPD71054GB-10 is a high performance programmable timer/counter designed for timing control applications in microcomputer systems. The UPD71054GB-10 is fabricated by CMOS technology in order to relize low power consumption. The UPD71054GB-10 is the latest and the fastest version, which can be directly configured with top-of-line processors.
Parametrics
UPD71054GB-10 absolute maximum ratings: (1)power supply voltage, VDD: -0.5 to 7.0V; (2)input votlage, VI: -0.5 to VDD+0.3V; (3)output voltage, VO: -0.5 to VDD+0.3V; (4)operating temperature, Topt: -40 to 85℃; (5)storage temperature, Tstg: -65 to 150℃.
Features
UPD71054GB-10 features: (1)three independently-operated 16-bit counters; (2)six count modes available for each counter; (3)binary/BDC count operation; (4)multiple latch command for easy monitoring; (5)CMOS; (6)+5V single power supply.

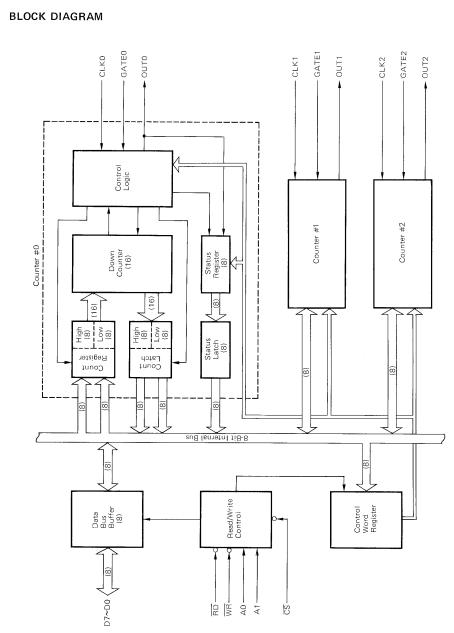

Diagrams
 |
