Product Summary

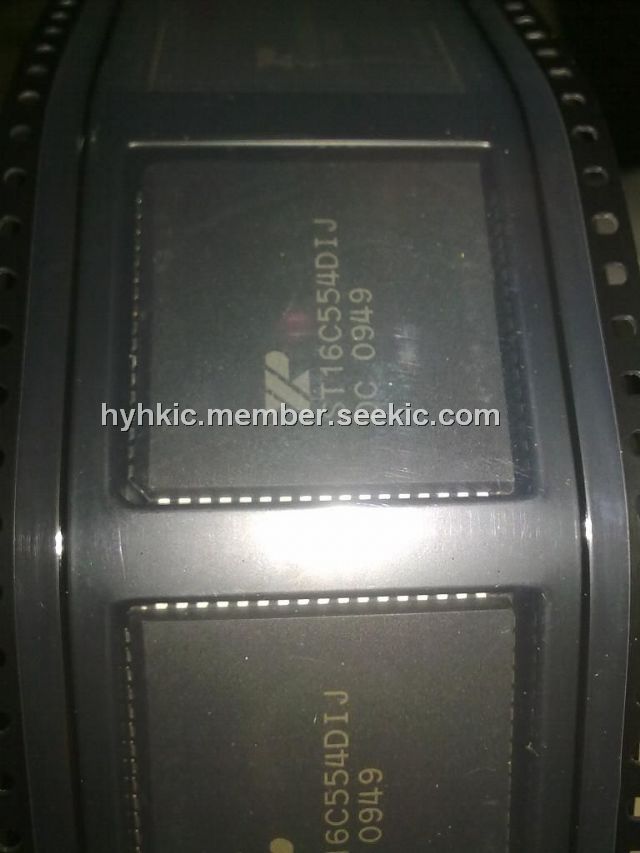

The ST16C554DIJ68-F is a quad Universal Asynchronous Receiver and Transmitter (UART) with 16 bytes of transmit and receive FIFOs, selectable receive FIFO trigger levels and data rates of up to 1.5 Mbps. Each UART has a set of registers that provide the user with operating status and control, receiver error indications, and modem serial interface controls. An internal loopback capability allows onboard diagnostics. The ST16C554DIJ68-F is available in a 64-pin LQFP and a 68-pin PLCC package. The 64-pin package only offers the 16 mode interface, but the 68-pin package offers an additional 68 mode interface which allows easy integration with Motorola processors. The applications of the ST16C554DIJ68-F include portable Appliances, telecommunication Network Routers, ethernet Network Routers, cellular Data Devices, factory Automation and Process Controls.
Parametrics
ST16C554DIJ68-F absolute maximum ratings: (1)Power Supply Range: 7 Volts; (2)Voltage at Any Pin: GND-0.3 V to VCC+0.3 V; (3)Operating Temperature: -40℃ to +85℃; (4)Storage Temperature: -65℃ to +150℃; (5)Package Dissipation: 500 mW.
Features
ST16C554DIJ68-F features: (1)Pin-to-pin compatible with the industry standard ST16C454, ST68C454, ST68C554, TI’s TL16C554A and Philips’SC16C554B; (2)Intel or Motorola Data Bus Interface select; (3)Four independent UART channels: Register Set Compatible to 16C550; Data rates of up to 1.5 Mbps at 5 V; Data rates of up to 500 Kbps at 3.3V; 16 byte Transmit FIFO; 16 byte Receive FIFO with error tags; 4 Selectable RX FIFO Trigger Levels; Full modem interface; (4)2.97V to 5.5V supply operation; (5)Crystal oscillator or external clock input.
Diagrams
<IMG alt="ST16C554DIJ68-F block diagram" src="http://www.seekic.com/uploadfile/ic-mfg/20128322102772.jpg" border=0>
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ST16C554DIJ68-F |
Exar |
UART Interface IC 2.97V-5.5V 16B FIFO temp -45 to 85C;UART |
Data Sheet |
|
|
||||||||||||
