Product Summary

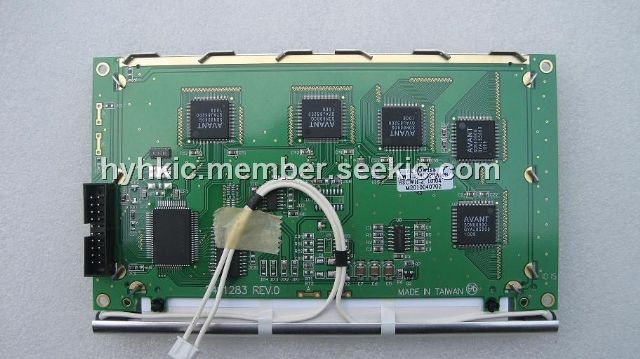

The TLX-1741-C3B is a 240*128 stn LCD panel manufactured by Toshiba.

Parametrics

TLX-1741-C3B absolute maximum ratings: (1)Supply voltage: 0 to 7.0V; (2)FL driving voltage: 1500Vrms; (3)Input current: 10mArms; (4)storage temperature: -20 to 60℃; (5)operating temperature: 0 to 50℃; (6)Humidity: 10 to 90%RH.

Features

TLX-1741-C3B features: (1)Display contents: 240*128; (2)Dimensional outline: 170*103*14; (3)Display mode: transmissive type; (4)surface treament: anti glare with hard coat on LCD surface; (5)Circuits: X driver, Y driver power supply circuit, LCD controller; (6)Interface: CE WR RD CD RESET, data.

Diagrams

<IMG alt="TLX-1741-C3B block diagram" src="http://www.seekic.com/uploadfile/ic-mfg/20128232118405.jpg" border=0>
