Product Summary
The TORX147L is a fiber optic receiving module for digital audio interface.
Parametrics
TORX147L absolute maximum ratings: (1)Storage Temperature, Tstg: -40 to 70℃; (2)Operating Temperature, Topr: -20 to 70℃; (3)Supply Voltage, VCC: -0.5 to 4.5 V; (4)High Level Output Current, IOH: -2 mA; (5)Low Level Output Current, IOL: 2 mA; (6)Soldering Temperature, Tsol: 260℃.
Features
TORX147L features: (1)For JEITA Standard CP-1212 (Digital Audio Optical Interface for Consumer Equipment); (2)A selffitapping hole for easy attachment to Audio Equipments panels; (3)Shutter System.

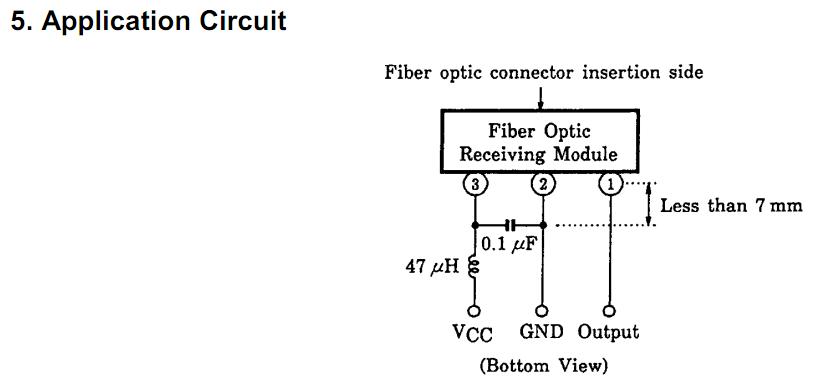

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TORX147L(F,T) |
|
RECEIVER MOD FIBER OPTIC W/SHUT |
Data Sheet |
|
|
||||||||||||||||||||
|
TORX147LF,T |
Toshiba |
Fiber Optic Transmitters, Receivers, Transceivers TOSLINK RECEIVER 15Mbps Vcc=3.3V |
Data Sheet |
Negotiable |
|
||||||||||||||||||||
