Product Summary

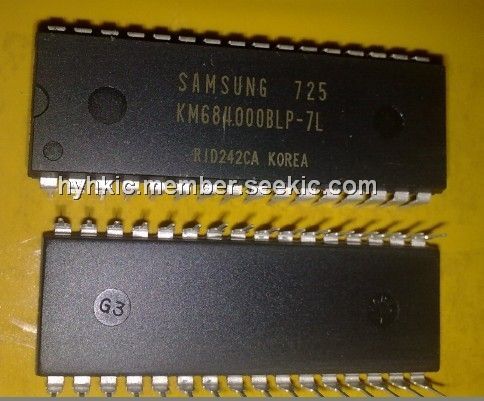

The KM684000BLP-7L is a 512Kx8 bit Low Power CMOS Static RAM fabricated by SAMSUNG advanced CMOS process technology. The device supports various operating temperature ranges and various package types for user flexibility of system design. It also supports low data retention voltage for battery back-up operation with low data retention current.
Parametrics
Absolute maximum ratings: (1)Voltage on any pin relative to Vss, VIN,VOUT: -0.5 to 7.0 V; (2)Voltage on Vcc supply relative to Vss, VCC: -0.5 to 7.0 V; (3)Power Dissipation, PD: 1.0 W ; (4)Storage temperature, TSTG: -65 to 150 ℃ ; (5)Soldering temperature and time, TSOLDER: 260℃ , 10sec(Lead Only).
Features
Features: (1)Process Technology: TFT; (2)Organization: 512Kx8; (3)Power Supply Voltage: 4.5~5.5V; (4)Low Data Retention Voltage: 2V(Min); (5)Three state output and TTL Compatible; (6)Package Type: 32-DIP-600, 32-SOP-525, 32-TSOP2-400F/R.
Diagrams
<IMG src="http://www.seekic.com/uploadfile/ic-mfg/20128231221547.jpg" border=0>
 |
