Product Summary
The ZN459CP is an ultra low noise wideband preamplifier. A versatile high grade a.c. pre-amplifier designed for applications requiring ultra low noise such as infra-red imaging and low noise wide band amplifiers e.g. microphone, acoustic emission, transducer bridge amplifier. The matching of open loop gain coupled with small physical size make the ZN459CP series ideal for multichannel amplification.
Parametrics
ZN459CP absolute maximum ratings: (1)Supply voltage: 6 Volts; (2)Operating Temperature Range: 0 to +70℃; (3)Storage Temperature Range: -55 to +125℃.
Features
ZN459CP features: (1)High Controlled Gain: 60dB ±1dB typical; (2)Low Noise: 40Ω Equivalent Noise; Resistance, or 800pV√￣Hz; (3)Wide bandwidth: 15MHz typical; (4)Low Supply Current: <3mA from 5V.

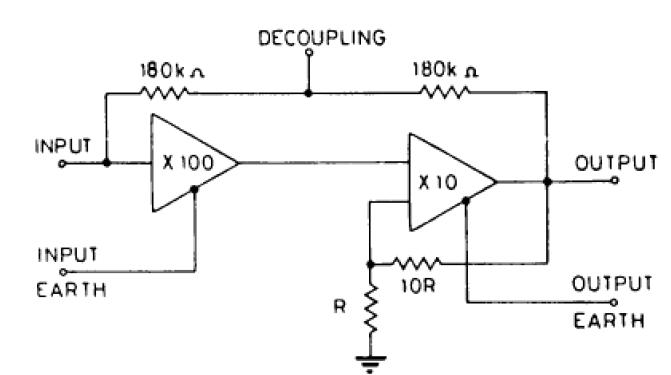

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 ZN459CP |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
ZN458 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
ZN459 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
ZN459CP |
Other |
|
Data Sheet |
Negotiable |
|
||||
