Product Summary
The 2MBI300SK-060-01 is an IGBT Module. Applications of the 2MBI300SK-060-01 are Inverter for Motor drive, AC and DC Servo drive amplifier, Uninterruptible power supply, Industrial machines, such as Welding machines.
Parametrics
2MBI300SK-060-01 absolute maximum ratings: (1)Collector-Emitter voltage VCES: 1200V; (2)Gate-Emitter voltaga VGES: 20V; (3)Collector current Continuous Tc=25℃ IC: 400A; (4)Max. power dissipation PC: 2500W; (5)Operating temperature Tj: 150℃; (6)Storage temperature Tstg: -40 to +125℃.
Features
2MBI300SK-060-01 features: (1)High speed switching; (2)Voltage drive; (3)Low inductance module structure.

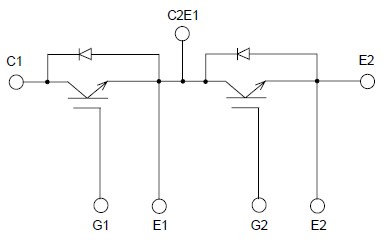

Diagrams
 |
