Product Summary

The 8010GL is a Compact, Separate Excitation Step-down Switching Mode Regulator IC. It is used in Onboard local power supplies, OA equipment, For stabilization of the secondary-side output voltage of switching power supplies.

Parametrics

8010GL absolute maximum ratings: (1)DC Input Voltage: 53V; (2)Power Dissipation: 1W; (3)Junction Temperature: 125℃; (4)Storage Temperature: -40 to 125℃; (5)Thermal Resistance (junction to case): 28℃/W; (6)Thermal Resistance (junction to ambient air): 100℃/W.

Features

8010GL features: (1)DIP 8 pin package; (2)Output current: 1.5A; (3)High efficiency: 86% (at VIN = 20V, lO = 1A, VO = 5V); (4)Capable of downsize a choke-coil due to IC’s high switching frequency (250kHz). (Compared with conventional Sanken devices); (5)The output-voltage-variable type can vary its output voltage from 1V to 14V because of its low reference voltage (Vref) of 1V; (6)Wide Input Voltage Range (8 to 50V); (7)Output ON/OFF available; (8)Built-in overcurrent protection and thermal protection circuits.

Diagrams

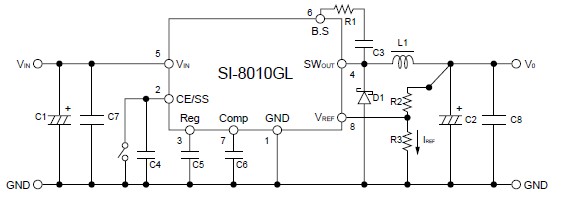

8010GL diagram

8010
8010

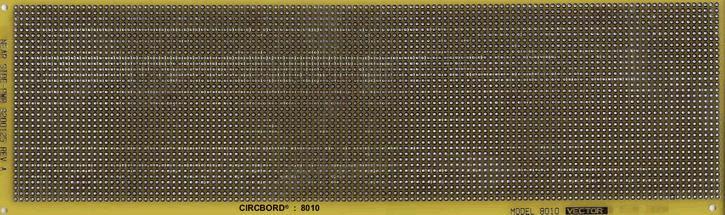

Vector
