Product Summary

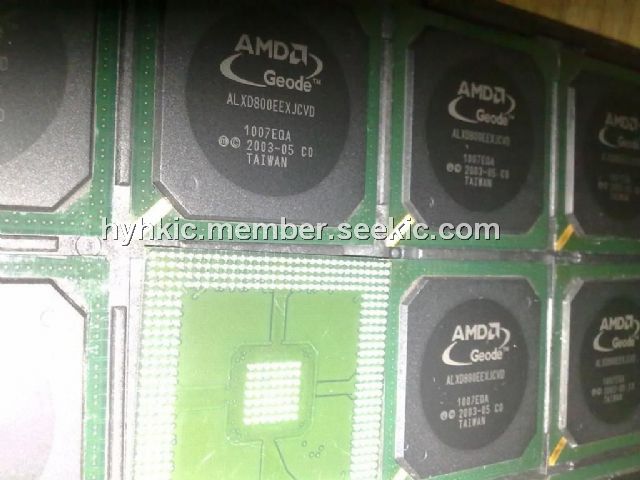

The AMD Geode LX processor ALXD800EEXJCVD is specifically designed to power embedded devices for entertainment, education, and business. Serving the needs of consumers and business professionals alike, the ALXD800EEXJCVD is an excellent solution for embedded applications, such as thin clients, interactive set-top boxes, single board computers, and mobile computing devices. Available with a core voltage of 1.2V, 1.25V, or 1.4V it offers extremely low typical power consumption leading to longer battery life and enabling small form-factor, fanless designs. While the processor core of the ALXD800EEXJCVD provides maximum compatibility with the vast amount of Internet content available, the intelligent integration of several other functions, including graphics and video datapaths, offers a true system-level multimedia solution.

Parametrics

ALXD800EEXJCVD absolute maximum ratings: (1)TSTORAGE, Storage Temperature: -65 to 150 ℃, No Bias; (2)VCORE, Core Supply Voltage: 1.5 V max; (3)VIO, I/O Supply Voltage: 3.0 to 3.6 V Also applies to VCA, VMA, VVA, and VDAC; (4)VMEM, Memory Voltage: 3.6 V max; (5)VMAX: Voltage On Any Pin: -0.5 to 3.8 V, Except HSYNC, VSYNC; Voltage on HSYNC, VSYNC: -0.5 to 5.5 V; ESD - Human Body Model: 2000 V max; ESD - Machine Model: 200 V max.

Features

ALXD800EEXJCVD features: (1)Functional blocks include: CPU Core; GeodeLink Control Processor; GeodeLink Interface Units; GeodeLink Memory Controller; Graphics Processor; Display Controller; Video Processor; TFT Controller/Video Output Port; Video Input Port; GeodeLink PCI Bridge; security Block; (2)0.13 micron process; (3)Packaging: 481-Terminal BGU (Ball Grid Array Cavity Up) with internal heatspreader; (4)Single packaging option supports all features; (5)Industrial temperature range available for the LX 800@0.9W processor; (6)x86/x87-compatible CPU core; (7)Performance: Processor frequency: up to 600 MHz; Dhrystone 2.1 MIPs: 150 to 450; Fully pipelined FPU; (8)Split I/D cache/TLB (Translation Look-aside Buffer): 64 KB I-cache/64 KB D-cache; 128 KB L2 cache configurable as I-cache, D-cache, or both; (9)Efficient prefetch and branch prediction; (10)Integrated FPU that supports the MMX and AMD 3DNow instruction sets; (11)Fully pipelined single precision FPU hardware with microcode support for higher precisions.

Diagrams

ALXD800EEXJCVD Internal Block Diagram
