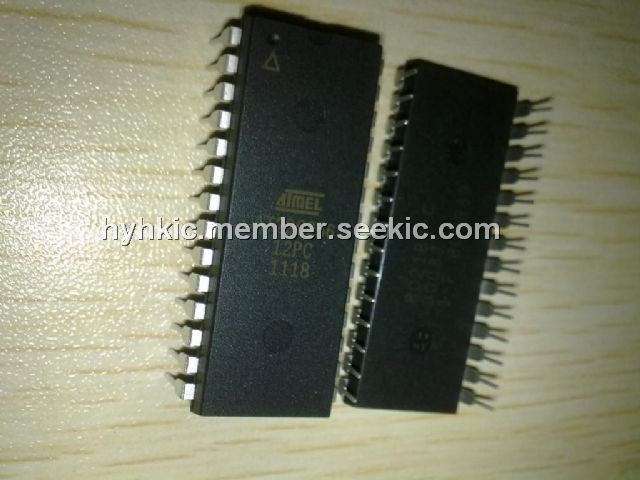

AT29C25612PC

five-volt-only in-system Flash, 6.25V, DIP-28

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.00~4.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.00~4.00

PartNumber:: AT29C25612PC

Brand:: ATMEL Corporation - ATMEL | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Amanda's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-03

From Other Seller

Part Number:AT29C25612PC
US $2.00 - 4.00
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
TOP259EN

US $1.10 - 3.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AT29C25612PC is a five-volt-only in-system Flash programmable and erasable read only memory (PEROM). Its 256K of memory is organized as 32,768 words by 8 bits. Manufactured with Atmel advanced nonvolatile CMOS technology, the device offers access times to 70 ns with power dissipation of just 275 mW. When The AT29C25612PC is deselected, the CMOS standby current is less than 300 μA. The AT29C25612PC endurance is such that any sector can typically be written to in excess of 10,000 times.

Parametrics

AT29C25612PC absolute maximum ratings: (1)Storage Temperature : -65℃ to +150℃; (2)All Input Voltages (including NC Pins)with Respect to Ground : -0.6V to +6.25V; (3)All Output Voltages with Respect to Ground : -0.6V to VCC + 0.6V; (4)Voltage on OE with Respect to Ground : -0.6V to +13.5V; (5)Temperature Under Bias: -55℃ to +125℃.

Features

AT29C25612PC features: (1)Fast Read Access Time – 70 ns; (2)5-volt Only Reprogramming; (3)Page Program Operation: Single Cycle Reprogram (Erase and Program), Internal Address and Data Latches for 64 Bytes; (4)Internal Program Control and Timer; (5)Hardware and Software Data Protection; (6)Fast Program Cycle Times: Page (64 Byte)Program Time – 10 ms, Chip Erase Time – 10 ms; (7)DATA Polling for End of Program Detection; (8)Low-power Dissipation: 50 mA Active Current, 300 μA CMOS Standby Current; (9)Typical Endurance > 10,000 Cycles; (10)Single 5V ± 10% Supply; (11)CMOS and TTL Compatible Inputs and Outputs; (12)Commercial and Industrial Temperature Ranges.
