Product Summary

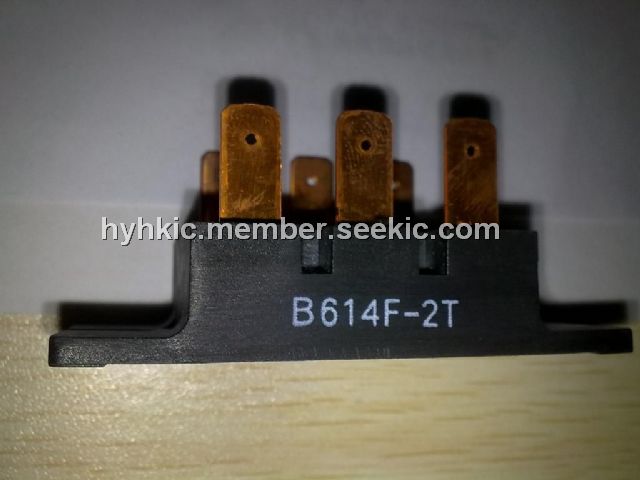

The B614F-2T is a scr/diode module. The B614F-2T comes in eight standard circuits and are designed to control AC or DC variable voltage output up to 15KW. The package comes with standard .250 quick-connect terminals. The B614F-2T has 2500 Vrms isolation and are UL recognized (file no. E72445). Optional isolation barriers are available. Manufactured in Crydom’s ISO 9001 Certified facility for optimum product performance and reliability.

Parametrics

B614F-2T absolute maximum ratings: (1)ID Maximum DC Output Current (Tc = 85°C): 42.5A; (2)VF Maximum Voltage Drop @ Amps Peak: 1.6V @ 42.5A; (3)TJ Operating Junction Temperature Range: -40°C to +125°C; (4)di/dt Critical Rate of Rise of On-State Current @ TJ=125°C: 100A/μs; (5)dv/dt Critical Rate of Rise of Off-State Voltage [V/μs]: 500V/μs; (6)IGT Maximum Required Gate Current to Trigger @ 25°C: 80mA; (7)PG(AV)Average Gate Power: 0.5W; (8)VGM Maximum Peak Gate Voltage (Reverse): 5.0V.

Features

B614F-2T features: (1)Eight Standard Circuits; (2)For AC or DC Variable Voltage Output Up To 15KW.

Diagrams

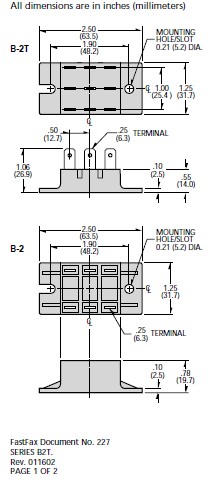

B614F-2T dimension
