Product Summary

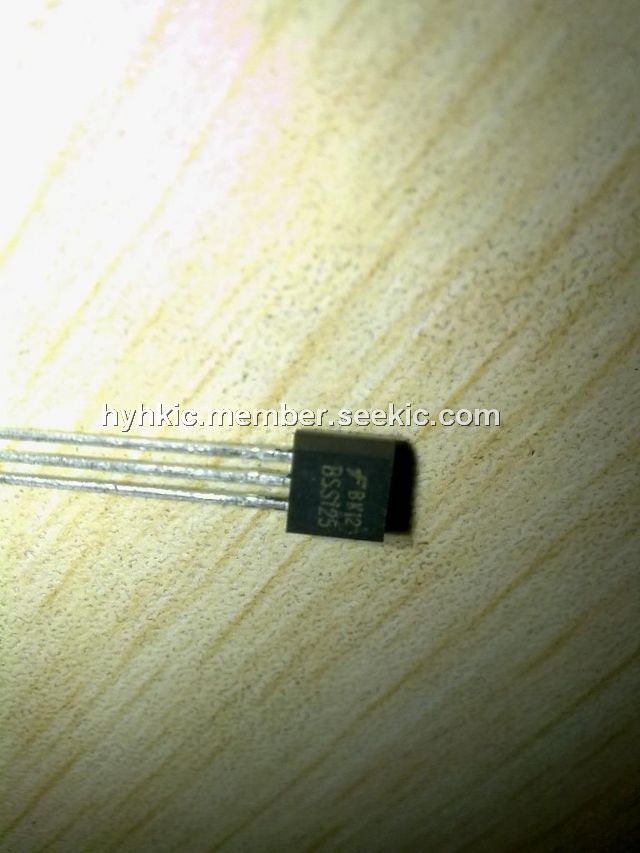

The BSS125 is a SIPMOS small-signal transistor.
Parametrics
BSS125 absolute maximum ratings: (1) Drain source voltage VDS: 600V; (2) Drain-gate voltage RGS = 20kΩ VDGR: 600V; (3) Gate source voltageVGS± 14Gate-source peak voltage,aperiodic Vgs: ±20V; (4) Continuous drain currentTA = 35 °C ID: 0.1A; (5) DC drain current, pulsedTA = 25 °C IDpuls: 0.4A; (6) Power dissipationTA = 25 °CPtot: 1W.
Features
BSS125 features: (1)N channel; (2)Enhancement mode; (3)VGS(th) = 1.5, 2.5 V.
Diagrams
 |
