Product Summary

The CY62256NLL-70SNXC is a static RAM organized as 32K words by 8 bits. Easy memory expansion is provided by an active LOW chip enable (CE) and active LOW output enable (OE) and tristate drivers. The CY62256NLL-70SNXC has an automatic power down feature, reducing the power consumption by 99.9 percent when deselected. An active LOW write enable signal (WE) controls the writing/reading operation of the memory. When CE and WE inputs are both LOW, data on the eight data input/output pins (I/O0 through I/O7) is written into the memory location addressed by the address present on the address pins (A0 through A14). Reading the CY62256NLL-70SNXC is accomplished by selecting the device and enabling the outputs, CE and OE active LOW, while WE remains inactive or HIGH. Under these conditions, the contents of the location addressed by the information on address pins are present on the eight data input/output pins. The input/output pins remain in a high impedance state unless the chip is selected, outputs are enabled, and write enable (WE) is HIGH.

Parametrics

CY62256NLL-70SNXC absolute maximum ratings: (1)Storage temperature : –65 ℃ to +150 ℃; (2)Ambient temperature with power applied : –55 ℃ to +125 ℃; (3)Supply voltage to ground potential (pin 28 to pin 14): –0.5 V to +7.0 V; (4)DC voltage applied to outputs in high Z State[3] : –0.5 V to VCC + 0.5 V; (5)DC input voltage[3] : –0.5 V to VCC + 0.5 V; (6)Output current into outputs (LOW): 20 mA.

Features

CY62256NLL-70SNXC features: (1)Temperature Ranges: Commercial: 0 ℃to +70℃, Industrial: –40 ℃ to +85 ℃, Automotive-A: –40 ℃to +85 ℃, Automotive-E: –40 ℃ to +125℃; (2)High Speed: 55 ns; (3)Voltage Range: 4.5 V to 5.5 V Operation; (4)Low Active Power: 275 mW (max); (5)Low Standby Power (LL version): 82.5μW (max); (6)Easy Memory Expansion with CE and OE Features; (7)TTL-Compatible Inputs and Outputs; (8)Automatic Power Down when Deselected; (9)CMOS for Optimum Speed and Power; (10)Available in Pb-free and non Pb-free 28-pin (600-mil)PDIP, 28-pin (300-mil)Narrow SOIC, 28-pin TSOP-I, and 28-pin Reverse TSOP-I Packages.

Diagrams

 CY62256NLL-70SNXC block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

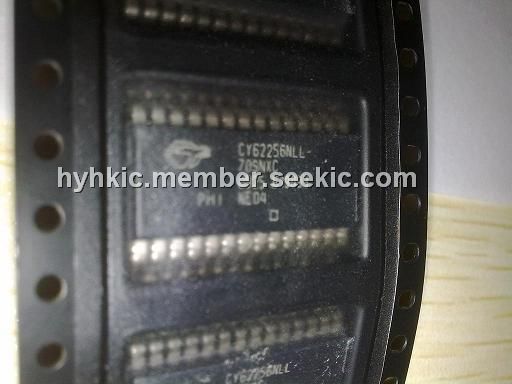

CY62256NLL-70SNXC
CY62256NLL-70SNXC

Cypress Semiconductor

SRAM SLo 5.0V ULTRA LoPwr 32Kx8 PbFree SRAM

Data Sheet

0-1: $1.65
1-25: $1.43
25-100: $1.35
100-250: $1.12
CY62256NLL-70SNXCT
CY62256NLL-70SNXCT

Cypress Semiconductor

SRAM 256K (32K x 8) Static RAM

Data Sheet

0-1: $1.65
1-25: $1.43
25-100: $1.35
100-250: $1.12
