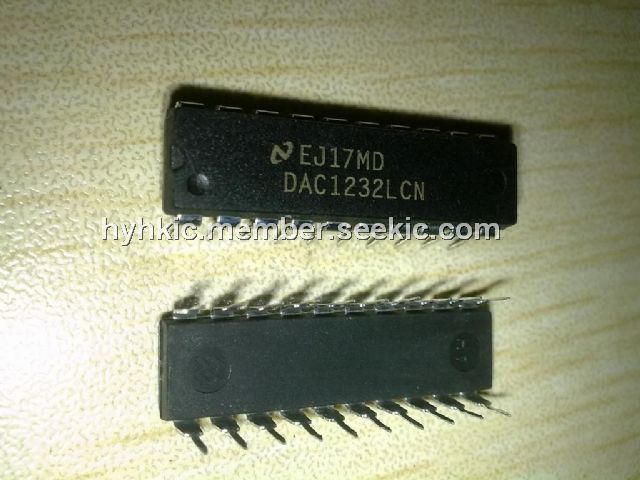

DAC1232LCN

12 bit multiplying D to A converter, 25V, 500mW, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $5.00~6.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $5.00~6.00

PartNumber:: DAC1232LCN

Brand:: National Semiconductor - NS | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Amanda's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-03

From Other Seller

Part Number:DAC1232LCN
US $5.00 - 6.00
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The DAC1232LCN is a 12 bit multiplying D to A converter designed to interface directly with a wide variety of microprocessors (8080, 8048, 8085, Z80, etc.). Double buffering input registers and associated control lines allow these DACs to appear as a two-byte stack in the system memory or I/O space with no additional interfacing logic required. The analog section is a precision silicon-chromium (Si Cr) R 2R ladder network and twelve CMOS current switches. An inverted R2R ladder structure is used with the binary weighted currents switched between the IOUT1 and IOUT2 maintaining a constant current in each ladder leg independent of the switch state. Special circuitry provides TTL logic input voltage level compatibility. The DAC1232LCN is the 12 bit members of a family of microprocessor compatible DACs (MICRO-DACsTM). For applications requiring other resolutions.

Parametrics

DAC1232LCN absolute maximum ratings: (1)Supply Voltage (VCC): 17 VDC; (2)Voltage at Any Digital Input: VCC to GND; (3)Voltage at VREF Input: 25V; (4)Storage Temperature Range: －65℃ to ＋150℃; (5)Package Dissipation at TA=25℃: 500 mW; (6)ESD Susceptability: 800V.

Features

DAC1232LCN features: (1)Linearity specified with zero and full-scale adjust only; (2)Direct interface to all popular microprocessors; (3)Double-buffered, single-buffered or flow through digital data inputs; (4)Logic inputs which meet TTL voltage level specs (1.4V logic threshold); (5)Works with g10V referenceÐfull 4-quadrant multiplication; (6)Operates stand-alone (without mP)if desired; (7)All parts guaranteed 12-bit monotonic; (8)DAC1230 series is pin compatible with the DAC0830 series 8-bit MICRO-DACs.
