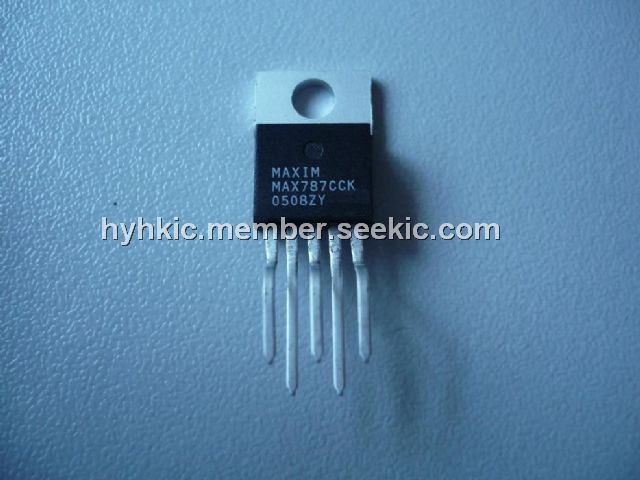

MAX787CCK

DC-DC regulator, TO-220, 45V, 5A, MAX787CCK, Maxim

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~0.21 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~0.21

PartNumber:: MAX787CCK

Brand:: Maxim Integrated Products - Maxim | Pack: ZIP | D/C: 05+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Amanda's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-04-25

From Other Seller

Part Number:MAX787CCK
US $0.10 - 0.21
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

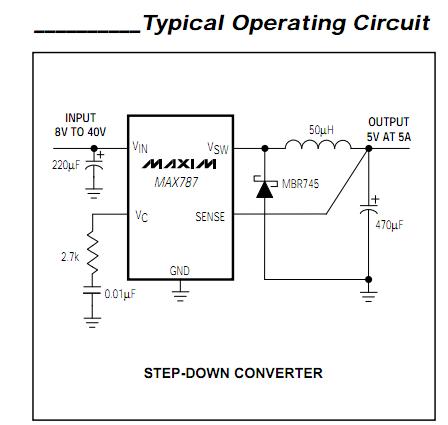

The MAX787CCK is a monolithic, bipolar, pulse-width modulation (PWM), switch-mode, step-down DC-DC regulator. Each is rated at 5A. Very few external components are needed for standard operation because the power switch, oscillator, feedback, and control circuitry are all on-chip. Employing a classic buck topology, these regulators perform high-current step-down functions. The applications of the MAX787CCK include Distributed Power from High-Voltage Buses, High-Current, High-Voltage Step-Down and Multiple-Output Buck Converter.

Parametrics

MAX787CCK absolute maximum ratings: (1)Input Voltage: 45V; (2)Switch Voltage with Respect to Input Voltage: 50V; (3)Switch Voltage with Respect to GND Pin (VSW negative): 35V; (4)SENSE Pin Voltage: -0.3V, +10V; (5)Operating Temperature Ranges: 0 to +70℃; (6)Junction Temperature Ranges: 0 to +125℃; (7)Storage Temperature Range: -65 to +160℃; (8)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX787CCK features: (1)Input Range: Up to 40V; (2)5A On-Chip Power Switch; (3)Fixed Outputs: 5V; (4)100kHz Switching Frequency; (5)Excellent Dynamic Characteristics; (6)Few External Components; (7)8.5mA Quiescent Current; (8)TO-220 Package.
