DS9637ACN

Schottky dual differential line receiver, 15V, 1300 mW, DIP-8

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.50~1.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.50~1.50

PartNumber:: DS9637ACN

Brand:: National Semiconductor - NS | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Amanda's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-02

From Other Seller

Part Number:DS9637ACN
US $0.50 - 1.50
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
LA76810A

US $0.90 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

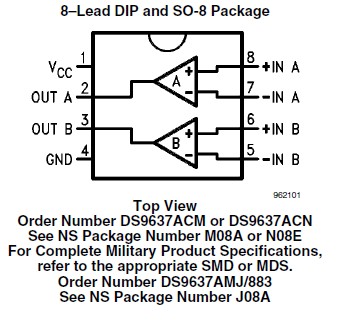

The DS9637ACN is a Schottky dual differential line receiver which has been specifically designed to satisfy the requirements of EIA Standards RS-422 and RS-423. In addition, the DS9637ACN satisfies the requirements of MIL-STD 188-114 and is compatible with the International Standard CCITT recommendations. The DS9637ACN is suitable for use as a line receiver in digital data systems, using either single ended or differential, unipolar or bipolar transmission. It requires a single 5V power supply and has Schottky TTL compatible outputs. The DS9637ACN has an operational input common mode range of ±7V either differentially or to ground.

Parametrics

DS9637ACN absolute maximum ratings: (1)Storage Temperature Range Ceramic DIP: －65°C to + 175°C; (2)Storage Temperature Range Molded DIP: －65°C to + 150°C; (3)Lead Temperature Ceramic DIP(Soldering, 30 seconds): 300°C; (4)Lead Temperature Molded DIP and SO Package (Soldering, 10 seconds): 265°C; (5)Maximum Power Dissipation (Note 1)at 25°C Cavity Package: 1300 mW; (6)Maximum Power Dissipation (Note 1)at 25°CMolded Package: 930 mW; (7)Maximum Power Dissipation (Note 1)at 25°CSO Package: 810 mW; (8)VCC Lead Potential to Ground:－0.5V to 7.0V; (9)Input Potential to Ground: ±15V.

Features

DS9637ACN features: (1)Dual channel; (2)Single 5V supply; (3)Satisfies EIA standards RS-422 and RS423; (4)Built-in ±35 mV hysteresis; (5)High input common mode voltage range; (6)High input impedance; (7)TTL compatible outputs; (8)Schottky technology; (9)Extended temperature range.
