Product Summary

The FR9222 is a transistor. It features all of the well established advantages of MOSFETs such as voltage control, very fast switching, ease of paralleling and temeprature stability of the electrical parameters. The FR9222 is well suited for applications where limited heat dissipation is required such as, computers and peripherals, telecommunications equipment, DC/DC converters, and a wide range of consumer products.

Parametrics

FR9222 absolute maximum ratings: (1)ID, contnuous drain current: -2.8A at Tc=25℃; -1.8A at Tc=100℃; (2)IDM, pulsed drain current: -11A; (3)PD, max power dissipation: 42W; (4)VGS, gate to source voltage: ±20V; (5)EAS, single pulse avalanche energy: 200mJ; (6)IAR, avalanche current: -3.6A; (7)EAR, repetitive avalanche energy: 4.2mJ; (8)dv/dt, operating junction storage temperature range: -55 to 150℃.

Features

FR9222 features: (1)surface mountable; (2)straight lead option; (3)repetitive avalanche ratings; (4)dynamic dv/dt rating; (5)simple drive requirements; (6)ease of paralleling.

Diagrams

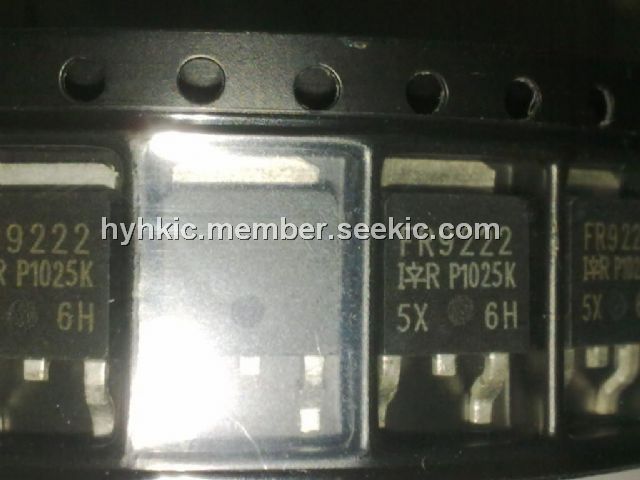

FR9222 circuit diagram
