Product Summary

The ILX511 is a rectangular reduction type CCD linear image sensor designed for bar code POS hand scanner and optical measuring equipment use. A built-in timing generator and clock-drivers ensure single 5 V power supply for easy use.

Parametrics

ILX511 absolute maximum ratings: (1)Supply voltage VDD: 6 V; (2)Operating temperature: –10 to +60 ℃; (3)Storage temperature: –30 to +80 ℃.

Features

ILX511 features: (1)Number of effective pixels: 2048 pixels; (2)Pixel size: 14 μm×: 200 μm (14 μm pitch); (3)Single 5 V power supply; (4)Ultra-high sensitivity; (5)Built-in timing generator and clock-drivers; (6)Built-in sample-and-hold circuit; (7)Maximum clock frequency: 2MHz.

Diagrams

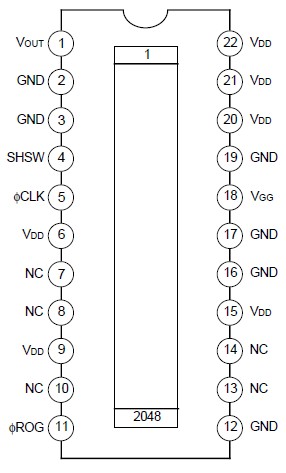

 ILX511 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

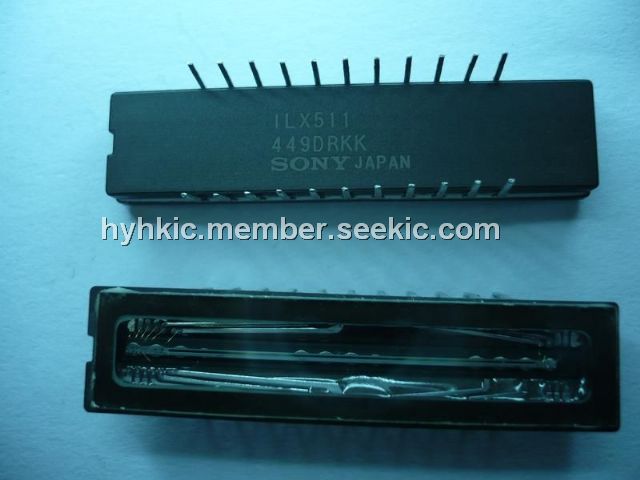

ILX511
ILX511

Other


Data Sheet

Negotiable
