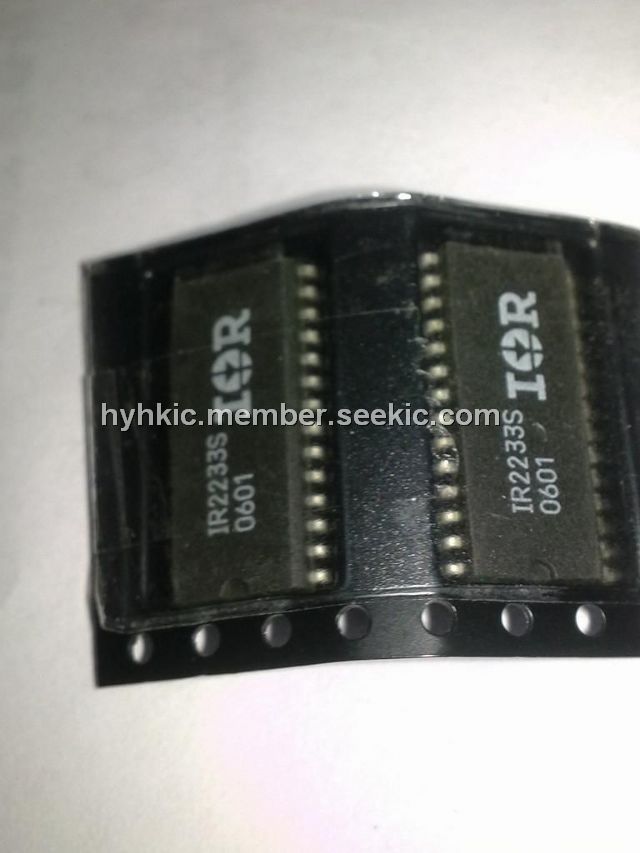

IR2233S

Product Summary

The IR2233S is a 3-phase bridge driver with three independent high side and low side referenced output channels for 3-phase applications. The IR2233S enables ruggedized monolithic construction. Logic inputs are compatible with CMOS or LSTTL outputs, down to 2.5V logic. An independent operational amplifier provides an analog feedback of bridge current via an external current sense resistor. A current trip function which terminates all six outputs can also be derived from this resistor. A shutdown function of the R2233S is available to terminate all six outputs. An open drain FAULT signal is provided to indicate that an over-current or undervoltage shutdown has occurred. Fault conditions are cleared with the FLT-CLR lead. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. Propagation delays are matched to simplify use in high frequency applications. The floating channels can be used to drive N-channel power MOSFETs or IGBTs in the : high side configuration which operates up to 600 volts or 1200 volts.

Parametrics

IR2233S absolute maximum ratings: (1)VS1,2,3 High side floating supply offset voltage: VB1,2,3 - 25, VB1,2,3 + 0.3V; (2)VHO1,2,3 High side floating output voltage: VS1,2,3 - 0.3, VB1,2,3 + 0.3V; (3)VCC Fixed supply voltage: -0.3, 25V; (4)VSS Logic ground: VCC - 25, VCC + 0.3V; (5)VLO1,2,3 Low side output voltage: -0.3 VCC, + 0.3V; (6)VB1,2,3 High side floating supply voltage: -0.3, 1225V; (7)VIN,AMP Op amp input voltage (CA+ & CA-): VSS - 0.3, VCC + 0.3V; (8)VOUT,AMP Op amp output voltage (CAO): VSS - 0.3, VCC + 0.3V; (9)VFLT FAULT output voltage: VSS - 0.3, VCC + 0.3V; (10)TJ Junction temperature: 125℃; (11)TS Storage temperature: -55, 150℃; (12)TL Lead temperature (soldering, 10 seconds): 300℃.

Features

IR2233S features: (1)Floating channel designed for bootstrap operation Fully operational to +600V or+1200V Tolerant to negative transient voltage dV/dt immune; (2)Gate drive supply range from 10V/12V to 20V DC and up to 25V for transient; (3)Undervoltage lockout for all channels; (4)Over-current shut down turns off all six drivers; (5)Independent 3 half-bridge drivers; (6)Matched propagation delay for all channels; (7)2.5V logic compatible; (8)Outputs out of phase with inputs; (9)Also available LEAD-FREE.

Diagrams
