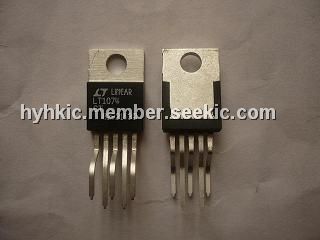

LT1074CT

switching regulator, 5A, TO220-5, 2.5 V ~ 50 V, 100kHz, LT1074CT, Linear Technology

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~0.10 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~0.10

PartNumber:: LT1074CT

Brand:: Linear Technology - Linear | Pack: ZIP | D/C: 06+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Amanda's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-04-25

From Other Seller

Part Number:LT1074CT
US $0.10 - 0.10
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The LT1074CT is a 5A monolithic bipolar switching regulator which requires only a few external parts for normal operation. The power switch, all oscillator and control circuitry, and all current limit components, are included on the chip. The topology is a classic positive buck configuration but several design innovations allow this device to be used as a positive-to-negative converter, a negative boost converter, and as a flyback converter. The switch output is specified to swing 40V below ground, allowing the LT1074CT to drive a tapped-inductor in the buck mode with output currents up to 10A. The applications of the LT1074CT include Buck Converter with Output Voltage Range of 2.5V to 50V, Tapped-Inductor Buck Converter with 10A Output at 5V, Positive-to-Negative Converter, Negative Boost Converter and Multiple Output Buck Converter.

Parametrics

LT1074CT absolute maximum ratings: (1)Input Voltage: 45V; (2)Switch Voltage with Respect to Input Voltage: 64V; (3)Switch Voltage with Respect to Ground Pin (VSW Negative): 35V; (4)Feedback Pin Voltage: –2V, +10V; (5)Shutdown Pin Voltage (Not to Exceed VIN): 40V; (6)ILIM Pin Voltage (Forced): 5.5V; (7)Maximum Operating Ambient Temperature Range, Commercial: 0℃ to 70℃; Industrial: –40℃ to 85℃; Military: –55℃ to 125℃; (8)Maximum Operating Junction Temperature Range, Commercial: 0℃ to 125℃; Industrial: –40℃ to 125℃; Military: – 55℃ to 150℃; (9)Maximum Storage Temperature: –65℃ to 150℃; (10)Lead Temperature (Soldering, 10 sec): 300℃.

Features

LT1074CT features: (1)5A Onboard Switch (LT1074); (2)100kHz Switching Frequency; (3)Greatly Improved Dynamic Behavior; (4)Available in Low Cost 5 and 7-Lead Packages; (5)Only 8.5mA Quiescent Current; (6)Programmable Current Limit; (7)Operates Up to 60V Input; (8)Micropower Shutdown Mode.
